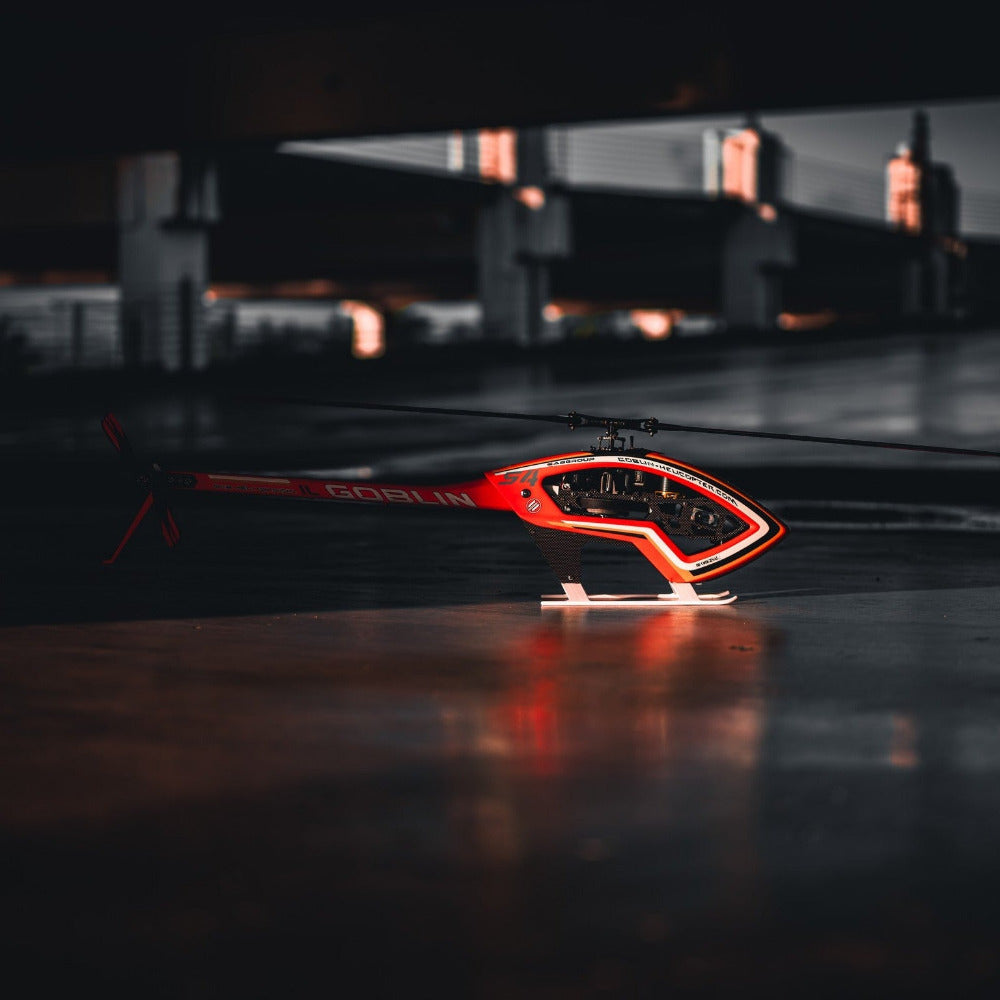

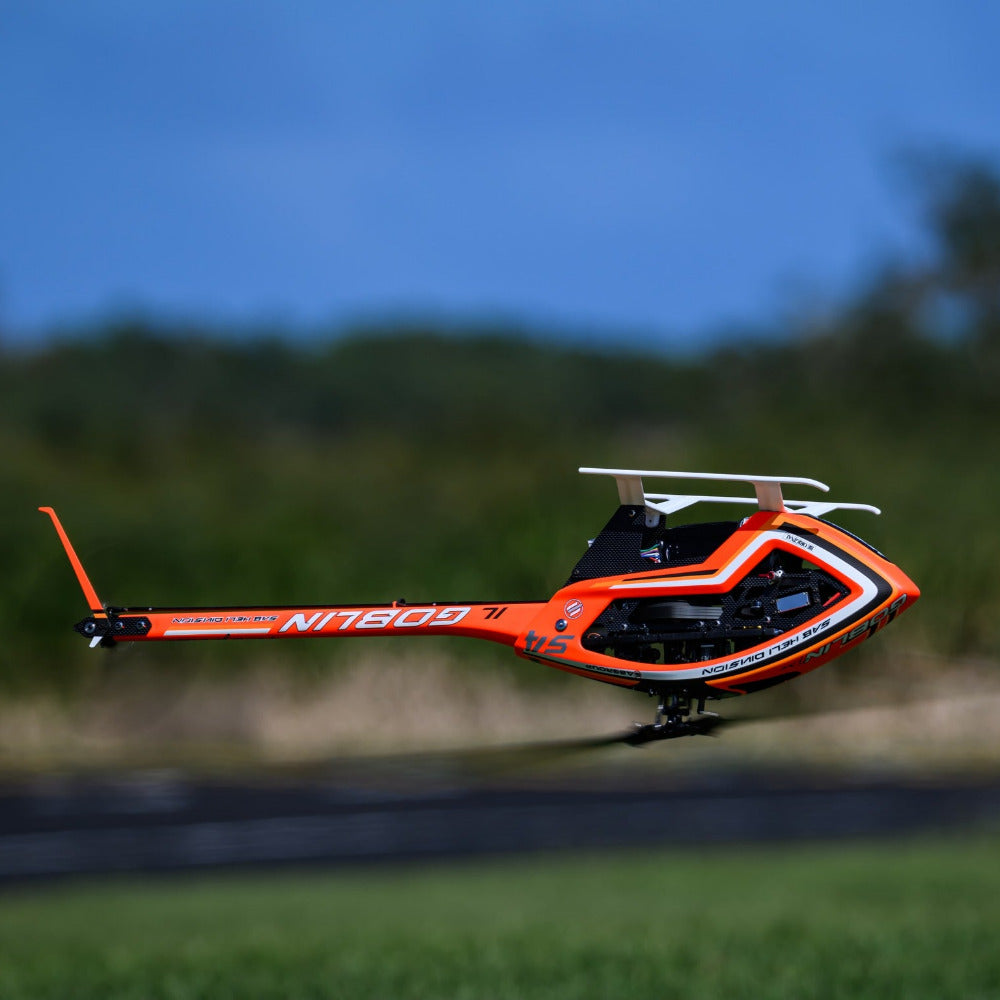

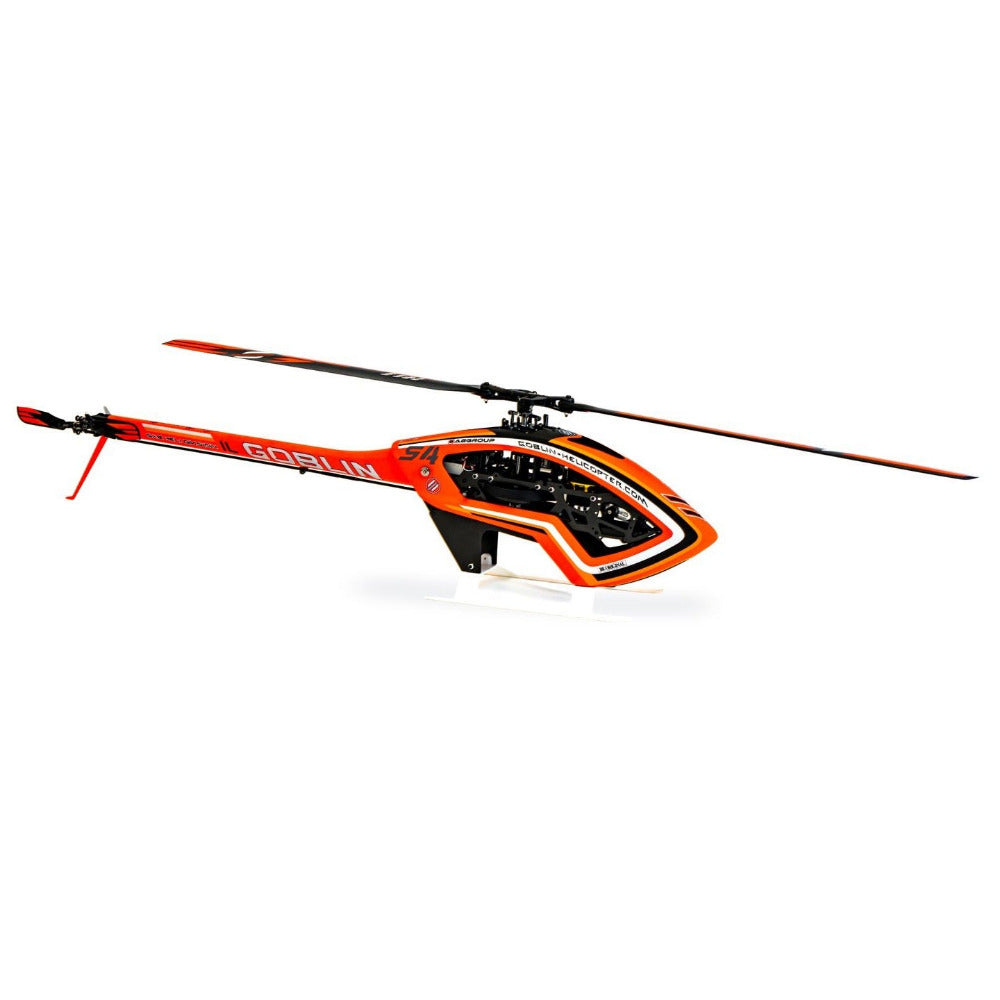

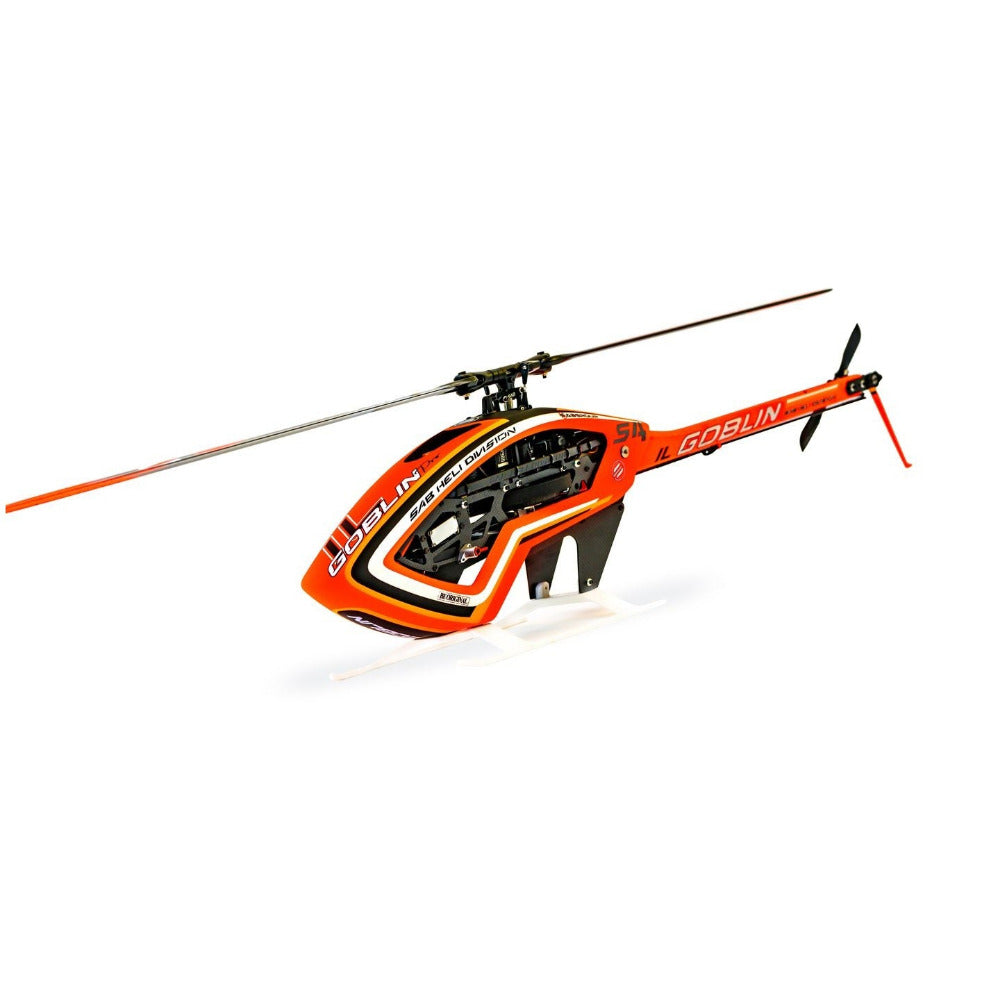

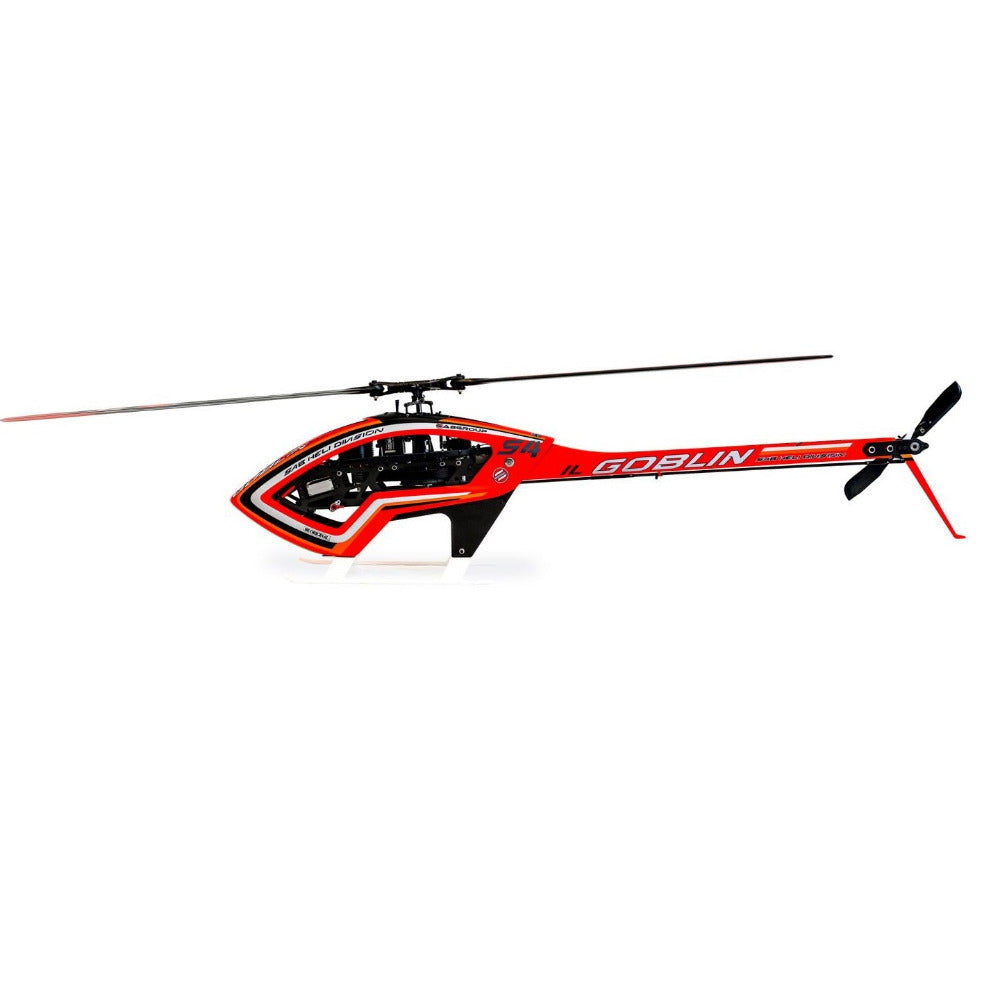

SAB ILGoblin PRO 520 Orange w/ Main and Tail Blades

Developed based on the well proven Goblin RAW 500, the ilGoblin 520 brings many improvements to the platform:

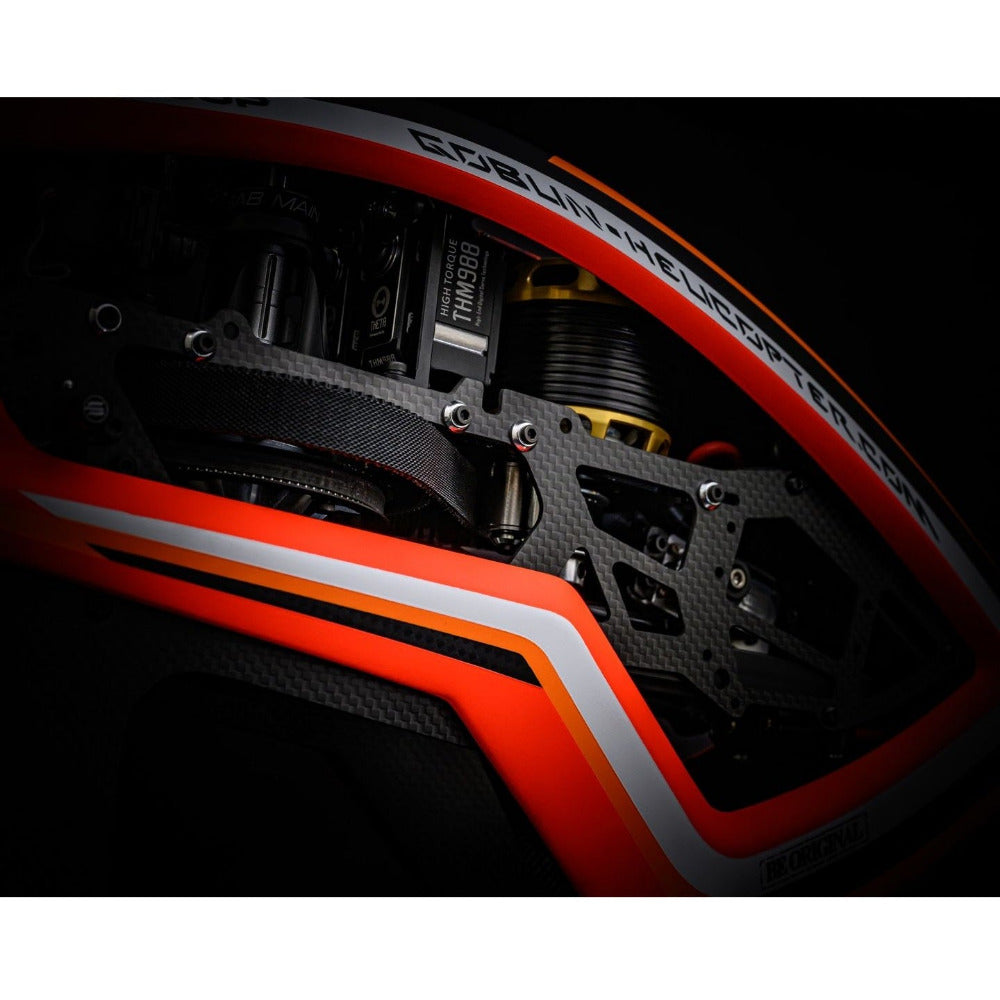

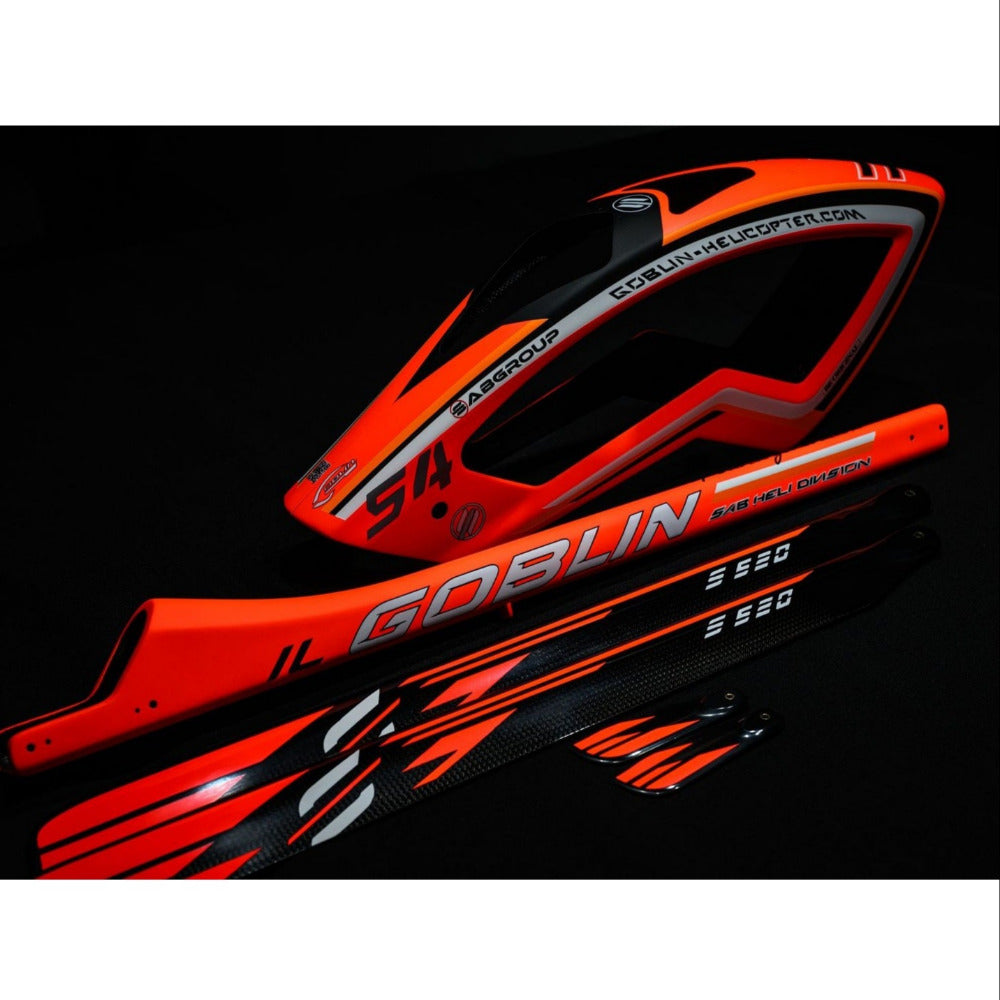

- ilGoblin Pro Canopy/Boom shape

- New, stronger one way bearing

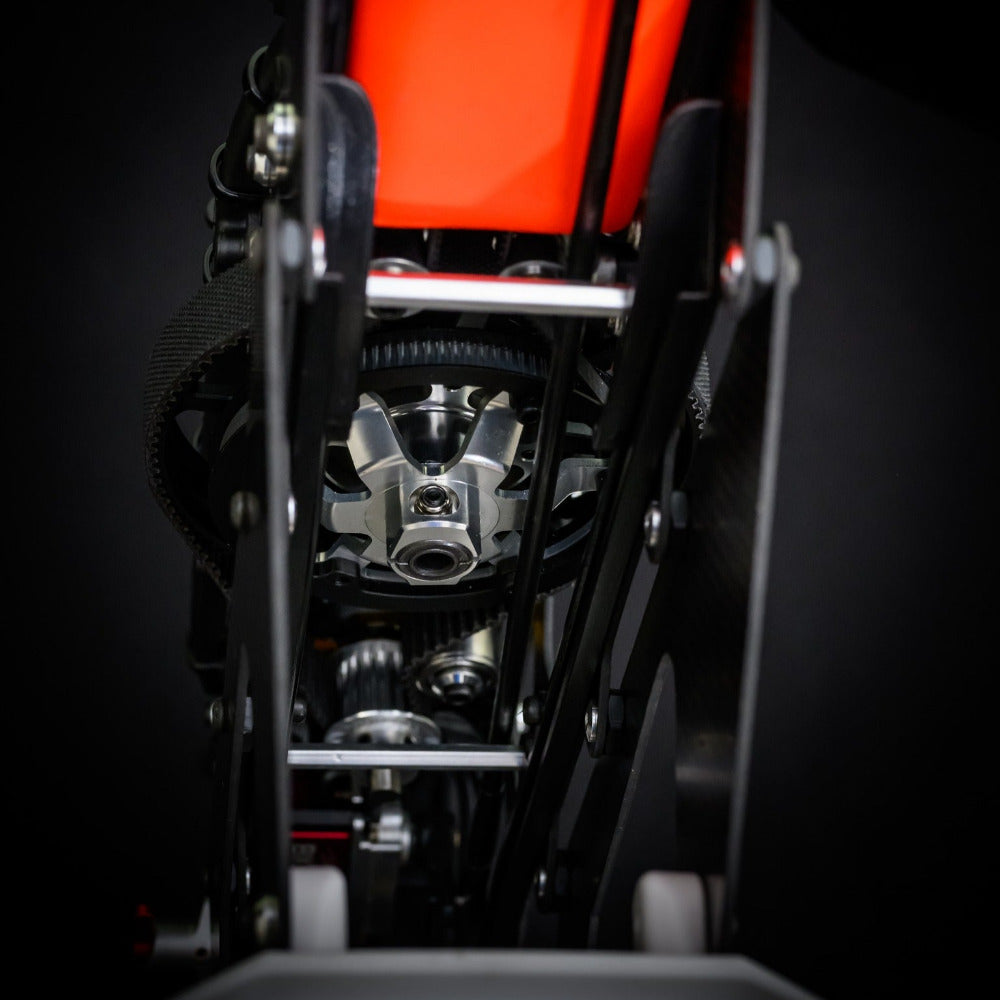

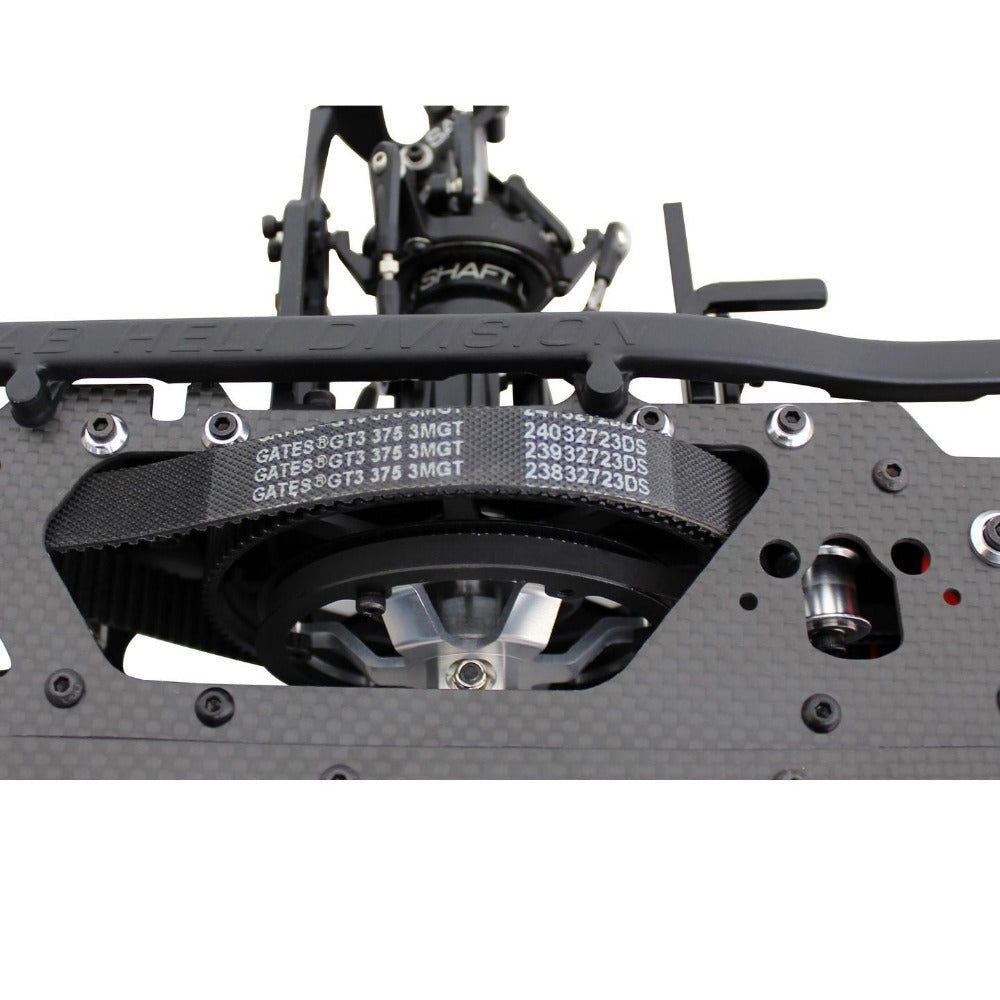

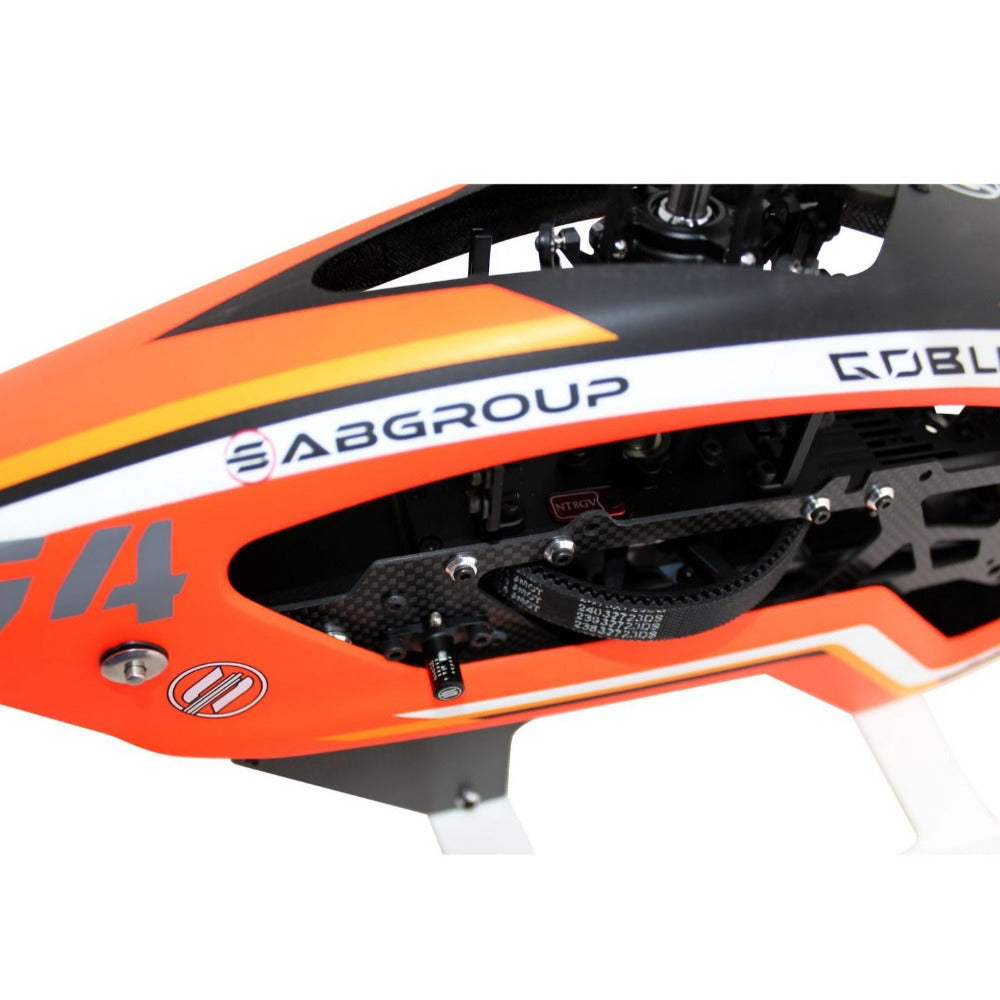

- New, stronger motor belt transmission

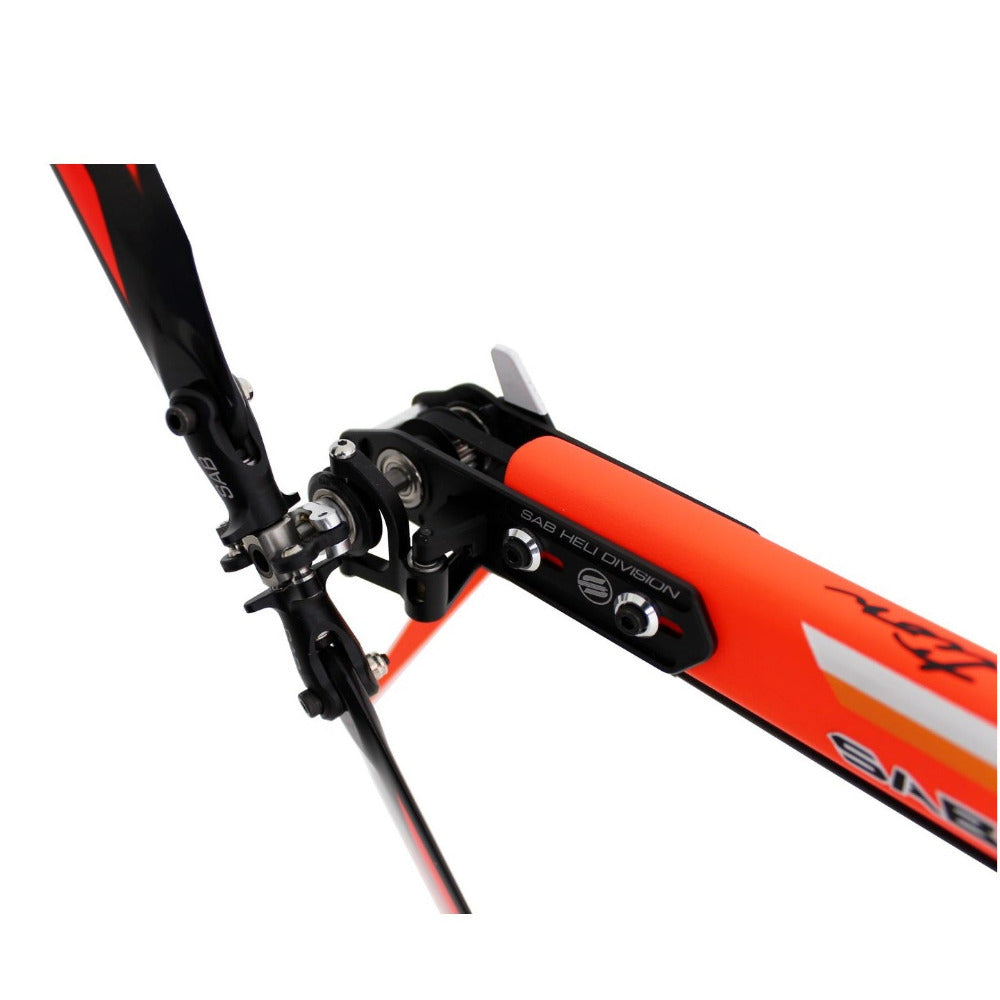

- New, smoother tail belt transmission

- Full Size tail servo compatible (Mini Tail Servo Mount H2272-S sold separately)

- 520mm main blades/82mm tail blades

The model supports a rear-inserting battery tray, allowing you to install batteries without ever removing the canopy.

Specifications:

AIRFRAME weight: 1894 gr (no blades, no battery, no electronics)

Main rotor diameter: 1220 mm (with 520 mm main blades)

Main blade length: 480 to 530mm

Tail rotor diameter: 222 mm (with 82 mm tail blades)

Tail blade length: 80 to 85 mm

Cyclic Servos: Mini size 35mm

Tail Servo: Mini size 35mm/Standard size 40mm

Main Rotor Ratio: 1: 4.47 to 5.88 (17T Motor Pulley Includes)

Tail Rotor Ratio: 3.88.1

Main shaft: 8 mm, Tail shaft: 5 mm

Molded carbon tail boom

Typical motor: 6S, 800/900 KV

Battery room: 48x48x150mm

Features:

KIT Includes:

• 17T motor pulley (other pulley sizes available).

• 1 battery tray with integrated connectors.

• S520 Orange (520 mm main blades).

• S82 Orange (82 mm tail blades).
