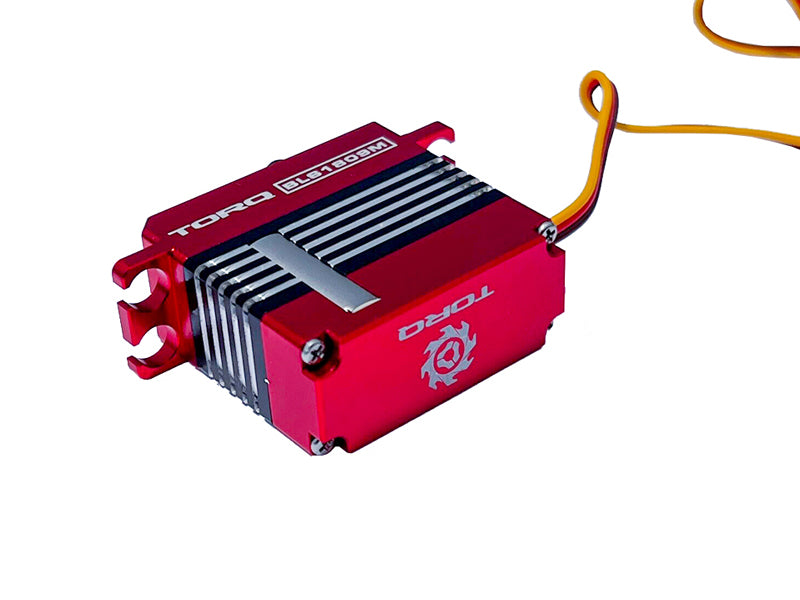

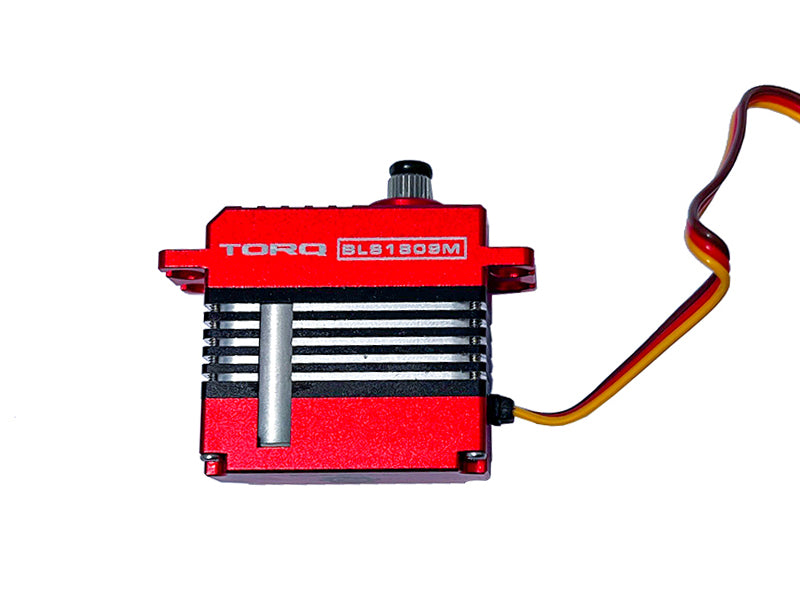

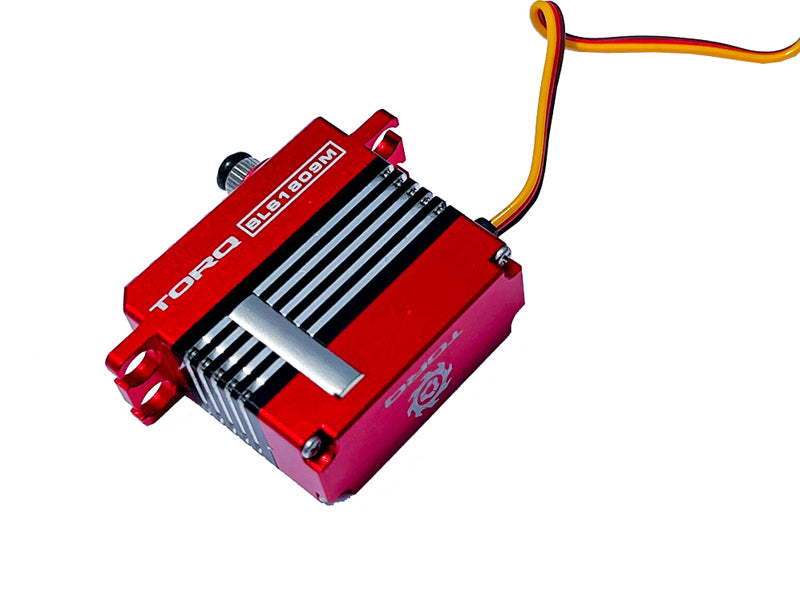

TORQ BLS1809M Mini HV Brushless Servo

Vendor: TORQ Servos
|
SKU: BLS1809M
Availability: In Stock

Earn [points_amount] when you buy this item.

Price Match Guarantee
$95.00
$0.00
$95.00
The order quantity exceeds the stock!
TORQ BLS1809M Mini HV Brushless Servo - HeliDirect

TORQ BLS1809M Mini HV Brushless Servo

$0.00 $95.00
TORQ BLS1809M Mini HV Brushless Servo - HeliDirect
TORQ BLS1809M Mini HV Brushless Servo - HeliDirect
TORQ BLS1809M Mini HV Brushless Servo - HeliDirect

TORQ BLS1809M Mini HV Brushless Servo

$0.00 $95.00

Related Products

Description

Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane & Jet Aircraft
- Dual Ball Bearing Construction


Speed:
0.07 sec / 60° @ 8.4V
0.08 sec / 60° @ 7.4V
0.09 sec / 60° @ 6.0V


Torque:
24Kg.cm / 333.29 oz in. @ 8.4V
22Kg.cm / 305.52 oz in. @ 7.4V
18Kg.cm / 249.97 oz. in. @ 6.0V


Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
Weight: 45g
Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:

Servo Grommet is suggested use if you use our servo on Nitro Heli.

Read More
Additional Information
Vendor: TORQ Servos
SKU: BLS1809M
Barcode: 769923253374
Availability: In Stock
Product Type: Heli Servo
Weight: 0.5 lb
