Xnova brushless high performance outrunner motor for 480-600 helicopters on 6S up to 8S setups. Excellent choice for Goblin 500, Logo 480, Gaui X5 or Synergie E5. The choice for hard 3D flying.Best power to wheight setup.
- High quality Neodym Magnets. Heat resistant up to 150 degrees C.
- Specialized wires,heat resistant up to 250 degrees C.
- Precisely balanced.
- High performance sheet metal stator.
- Optimized ventilation.
- High quality NMB bearings.
- Marked leading effiency up to 92%.
- Superb quality and machining of CNC parts.

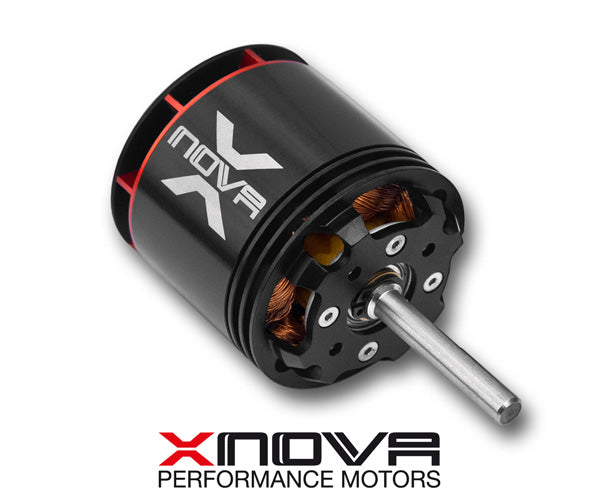

Xnova 4020-1200KV 2Y
| Slots & Poles | 24n8p |
| Winding T | 2Y |
| rpm/V | 1200 |
| Volt (V) | 10 | 20 |
| Io(A) | 2.1 | 3.2 |
| Rm (mohm) | 8 | 8 |
| Weight (without connector) (g) | 348 |
| Body Length (no shaft) mm | 50.75 |
| Diameter (mm) | 49.5 |
| Shaft Length (mm) (Details pictures) | / 36 / 22 / 25 |
| Shaft Dia. (mm) | 5 / 6 |
| Mounting Holes CTC Distance (mm) | V3=4*25mm and 4*30mm |
| Mounting Screw | V3=4*M3 and 4*M4 |
| Max Eff. Curr. | 51.23 | 89.44 |
| Max Eff. | 91.80 | 92.84 |
| Kt (Nm/A | 0.008 |
| Km (Nm/sqrt(w)) | 0.089 |
| Max Continuous Power(Watts) | 2400 |
| Peak Continuous Power(Watts) (5 sec) | 2900 |
| Max cont. current (A) | 105 |
| Vendor: | Xnova Performance Motors |
| SKU: | XN40201200-D |
| Availability: | In Stock |
| Product Type: | Heli Motors |
| Weight: | 1.0 lb |
