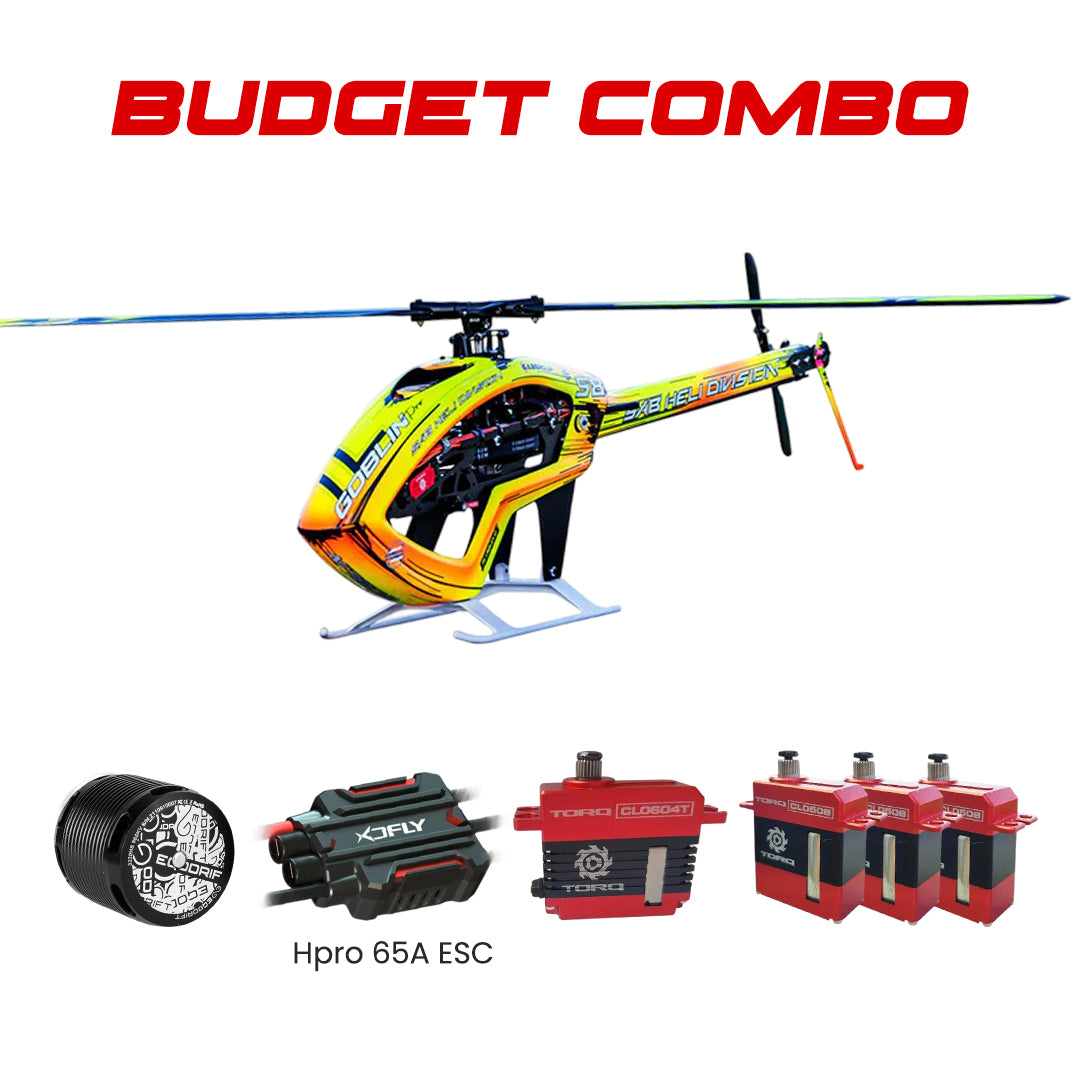

SAB ILGoblin PRO 420 Helicopter Kit - With Main & Tail Blades Eco Combo ESC, Motor & Servo - Yellow

*** Combo Package Include:

1. SAB ILGoblin PRO 420 Helicopter Kit - With Main & Tail Blades - White

- SAB was the first to introduce the Goblin 420 with a Direct Drive motor, opening up new possibilities in this class.

- Later, to maximize the power-to-weight ratio, SAB developed the belt-driven version: lighter, more powerful, and even more extreme.

- Now, SAB raises the bar once again by combining technology and design.

- Inspired by the iconic lines of the best-selling SG760, the new ilGOBLIN 420 brings the same stunning appeal to the 420 class.

*** Performance, style, innovation:

- Main rotor diameter 935mm (with 420mm blades)

- Main blade length 380 to 420mm

- Tail rotor diameter 194mm (with 72mm tail blades)

- Tail blade length 60 to 72mm

- Micro size cyclic servos (23mm)

- Mini size tail servo (35mm)

- Maximum battery size: 140x40x50mm (max)

- Recommended battery: 6s 2200/2700 mAh

- Recommended motor: 3020 – 3215 – 3220

- Recommended motor KV: 900-1000 KV

- Recommended battery weight: 350-420 grams

- Recommended ESC: 60A (70-80A is required only for hard 3D flight with temperatures above 30°C)

- Tail rotor ratio 4:1

- 8mm main shaft

- 5mm tail shaft

*** ilGoblin 420 main features:

- Quick release battery tray with integrated connectors

- Zytel HTN resin blade grip arms (sacrificial)

- It is not necessary to remove the canopy to replace the batteries.

- Main ratio 1:5/6

- Tail ratio 4:1

*** Package includes:

ILGoblin Pro 420 Helicopter Kit

S420-Orange Main Blades

S72-Orange Tail Blades

2. Egodrift Tengu 3220HS / 960kV Motor

*** SPECIFICATIONS:

- Manufacturer: EGODRIFT

- Stator size: 3220

- Motor configuration: 12N10P

- Motor weight: 180g

- Base Colour: Black

- Wire colour: Copper

- Motor wire type: High temperature copper wire

- Motor wire: 0.38mm

- Motor shaft: Hardened Steel

- LiPo cells: 6S

- Motor kV: 960 kV

- Stator diameter: 32 mm

- Stator height: 20 mm

- Stator lamination: 0.15 mm (+)

- Body Length: 41.1mm (1.62 inch)

- Diameter: 40.5mm (1.59 inch)

- Screw hole diameter: 3,0 mm

- Motor hole pattern: 25mm

- Idle current: 3.1A

- Maximum Current: 60A (Peak: 70A / 2 seconds)

- Maximum Power: 1680W (Peak: 2000W / 2 seconds)

- Internal resistance: 22.1 mOhm

- Connection: Wire / Gold plated plugs

- Designer: Yutao Zou

3. XDFly HPro 65A ESC 3-6S SBEC For RC Helicopter 325-380 Class:

*** Description:

We(XDFly) have released HPRO 65A ESC 3-6S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 325-380 Helicopter.

*** Key Features:

1. Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.

2. Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.

3. Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.

4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.

5. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.

6. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.

7. The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.

8. With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.

9. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.

*** Specification:

Model: HPRO 65A 3-6S SBEC

Continuous Current(A): 65A

Burst Current(A): 130A

Input Voltage: 3-6S Lipo

BEC Output: 6-12V Adjustable; Current Cont.10A, Peak 35A

Size:     60x36x19mm

Weight: 63g

Power Wire: 14 Gauge 85mm Red/Black

Motor Wire: 14 Gauge 62mm Black

Programming Way: XDFly Android&iOS APP/VBCT/E/RF2/Jeti

Telemetry: VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon

Applications: 325-380 Class electric helicopters or fixed-wing aircrafts

4 TORQ CL0508 Micro HV Servo:

*** Features:

- Engineered for High Performance Aircraft Extremes

- Specifically Designed for Helicopter, Airplane or Jet Based Applications

- Massive Levels of Torque & Speed

- Ultra Precise, High Resolution Precision

- Coreless Motor Design for Optimized High Torque Output

- Fully Replaceable Steel Gear Train for Maximum Strength

- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case

- 8.4V High Voltage Ready

- Dual Ball Bearing Design

*** Torque:

6.20Kg.cm (86.10 oz. in.) @ 8.4V

5.20Kg.cm (72.21 oz. in.) @ 7.4V

4.20Kg.cm (58.32 oz. in) @ 6.0V

*** Transit Speed:

0.07 sec. @ 8.4V

0.08 sec. @ 7.4V

0.09 sec. @ 6.0V

*** Specifications:

Dimensions: 23x12x27.5mm (LxWxH)

Weight: 20g

Operating Voltage: 4.8V - 8.4V DC

Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)

* HIGH TORQUE POWER OUTPUT

The TORQ CL0508 Micro Servo has been optimized with coreless motor technology, providing epic levels of torque in order to meet the demands of any aircraft extreme. From 3D helicopters, aerobatic airplanes or high speed jets, the TORQ CL0508 Micro Servo is the perfect choice to exceed your aircraft limitations.

* ULTRA FAST TRANSIT SPEEDS

Speed is life. Designed for ultra rapid transit speeds, the TORQ CL0508 offers incredible speeds for absolute levels of control, making your next flight truly epic in every possible way. No matter what you fly, the TORQ CL0508 is ready and waiting to provide the ultra fast inputs for crisp response & incredible control.\

* HIGH STRENGTH STEEL GEARS

Designed with strength in mind to harness the ultra high levels of torque available, the TORQ CL0508 is optimized with a full steel gear train to provide the best levels of overall strength. Utilizing high strength steel gears helps stand up to crash damage for the best overall functionality when under the greatest levels of stress.

* INCREDIBLE PRECISION & RESOLUTION

Servos are your direct connection to your aircraft, and precision & resolution are paramount to flight. Offering incredibly high levels of precision, the TORQ CL0508 Micro Servos will provide an ultra smooth, "locked in" feel to your aircraft for maximum levels of aerobatic control.

* EXCELLENT THERMAL DISSIPATION

Heat is the ultimate enemy, and getting rid of it is critical for maximum levels of aircraft performance. Enclosed within a 6061 anodized aluminum case, the TORQ CL0508 servos dissipate thermal heat under high energy demands, allowing this micro servo to perform under intense stress, without fail.

* HIGH VOLTAGE READY

Designed to maximize the highest ratings of torque & speed, the TORQ CL0508 is rated to handle unregulated 2S 8.4V LiPo power, taking full advantage of HV input power via receiver battery or BEC. With a wide operating voltage from 4.8V to 8.4V, the TORQ CL0508 servos will provide the power you need - when you need it the most.

* STEEL REPLACEMENT GEARS

Crashes happen, and even high strength gears can take a beating. No worries, though - with the TORQ CL0508, steel replacement gears are available, making it ultra easy to replace and maintain your servos, no matter what may happen in flight or on the ground.

5. TORQ CL0604T Mini HV Rudder Helicopter Servo:

*** Features:

- Dedicated Helicopter Rudder Servo

- Incredible Levels of Speed & Performance

- Ultra Precise, High Resolution Control

- Coreless Motor Design for Peak Torque Demand

- Fully Replaceable Steel Gear Train for Maximum Strength

- Excellent Thermal Dissipation via 6061 Finned Aluminum Case

- 8.4V High Voltage Ready

- Optimized for High Demand Rudder Control

- Dual Ball Bearing Construction

*** Speed:

0.04 sec / 60° @ 8.4V

0.06 sec / 60° @ 6.0V

*** Torque:

6Kg.cm / 83.32 oz. in. @ 8.4V

4Kg.cm / 55.54 oz. in. @ 6.0V

*** Specifications:

- Motor Type: Coreless Motor

- Servo Arm Type: Futaba

- Working Pulse Width / Frequency: 760us / 560Hz

- Weight: 40g

- Dimensions: 35.5mm x 15mm x 32.7mm (LxWxH)

- Voltage Range: 6.0V - 8.4V

*** Usage Note:

For helicopter rudder usage only. Please note that the TORQ CL0604T Mini HV Rudder Helicopter Servo servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.

Servo Grommet is suggested use if you use our servo on Nitro Heli
