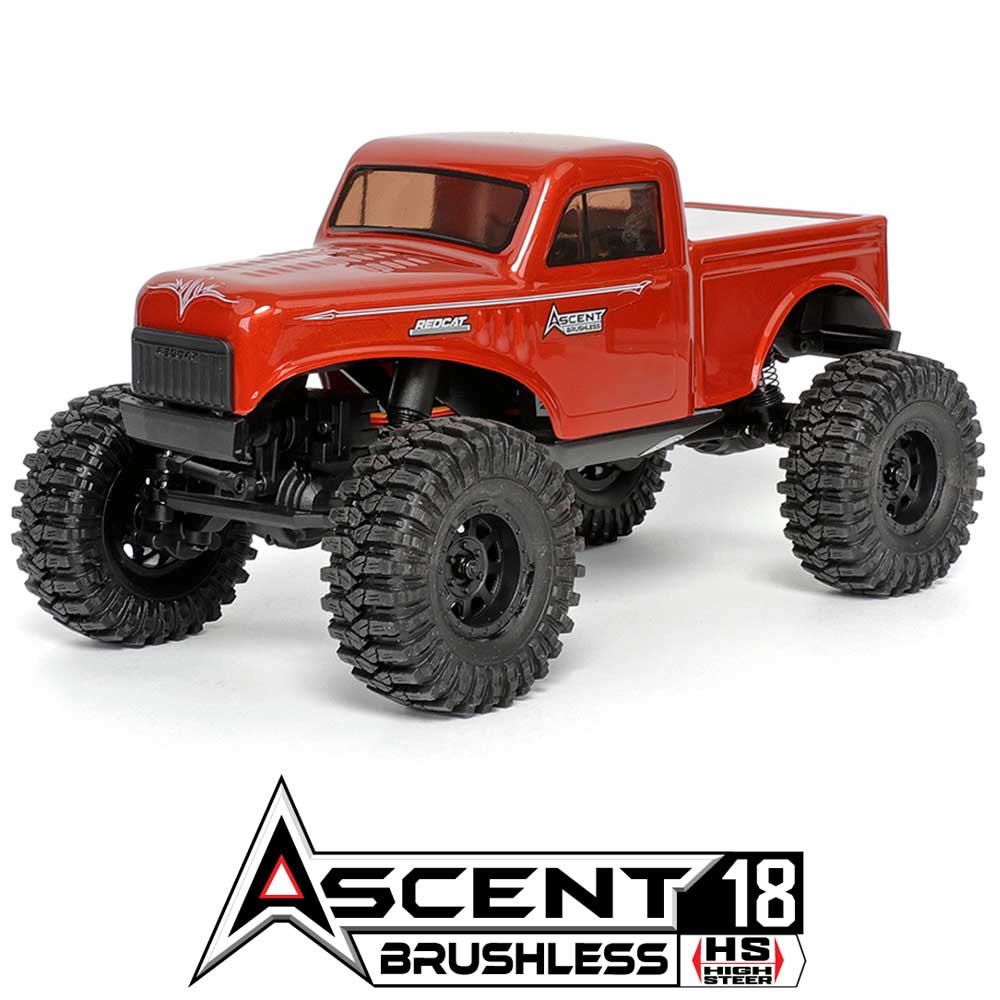

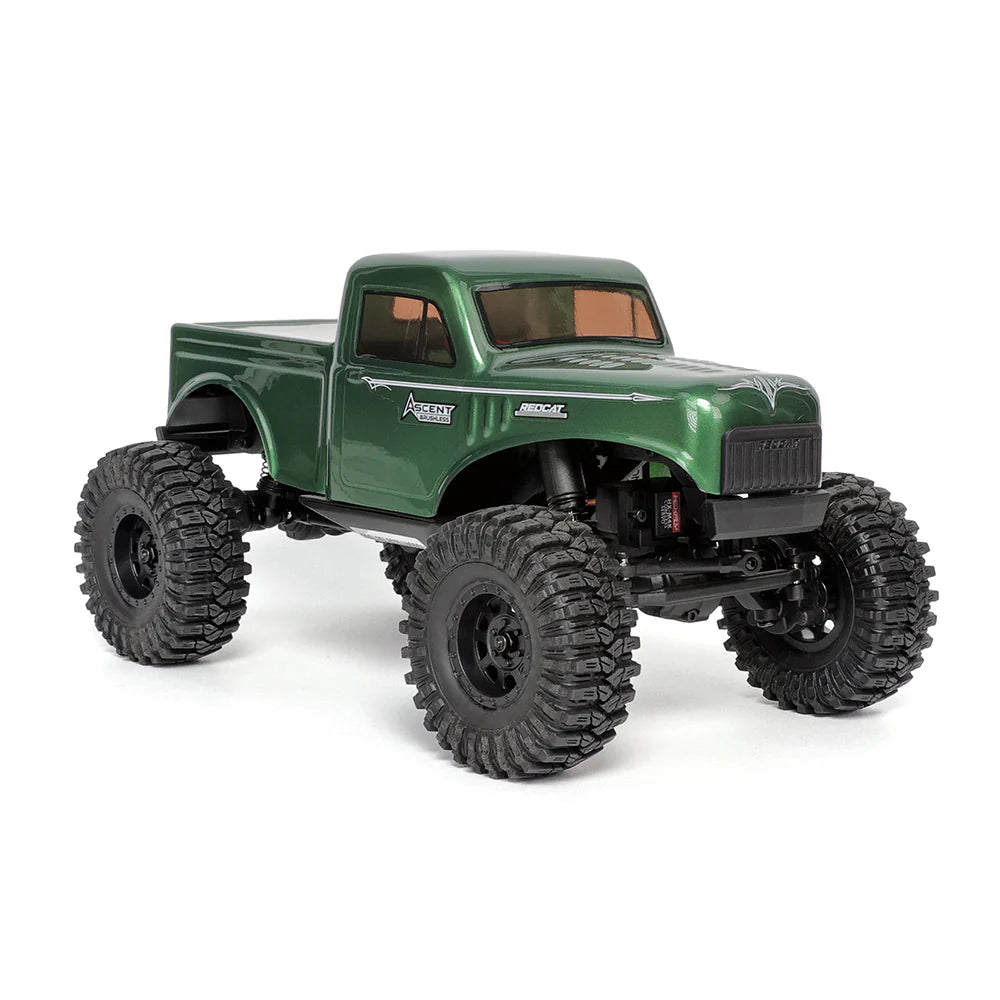

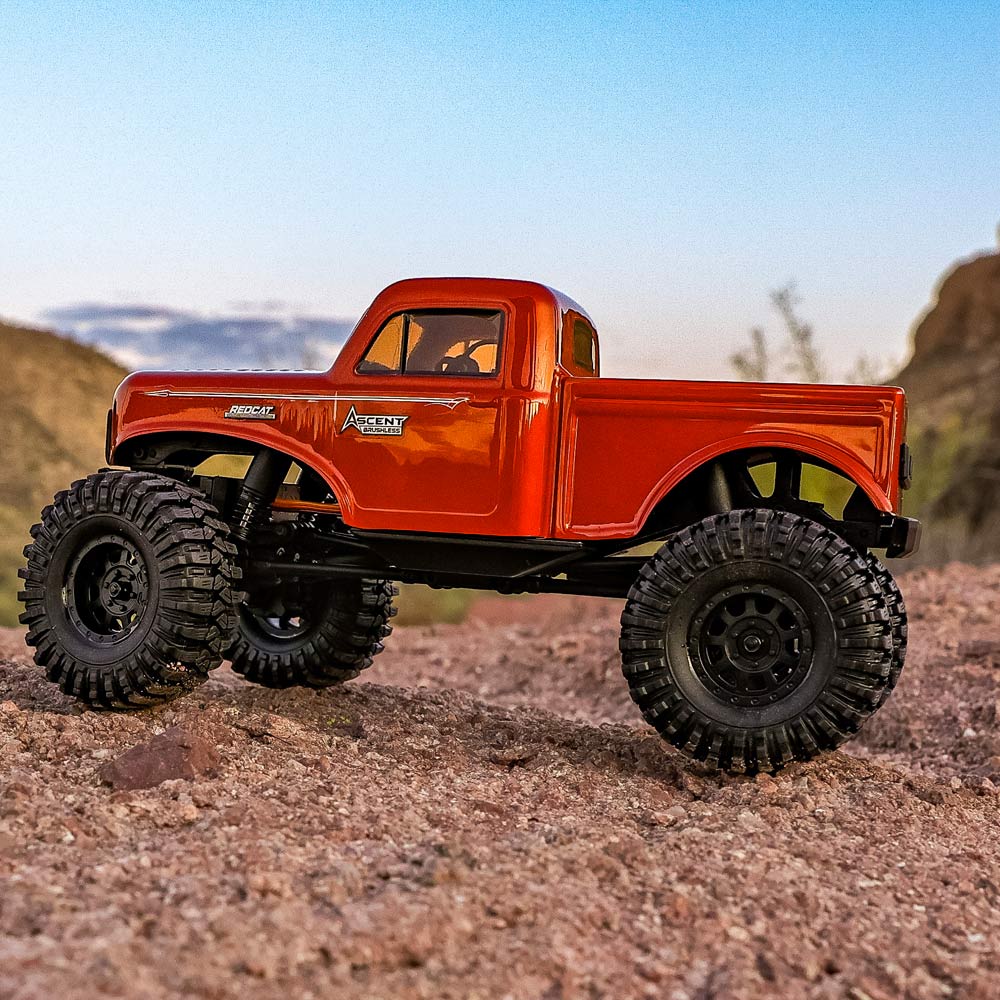

Ascent-18 BRUSHLESS Rock Crawler

The Redcat Ascent-18 Brushless takes compact crawling to the next level. Powered by a 3450kv brushless motor and 3-channel ESC, this 1:18 scale ready-to-run crawler delivers big performance in a small package—perfect for both indoor courses and outdoor adventures.

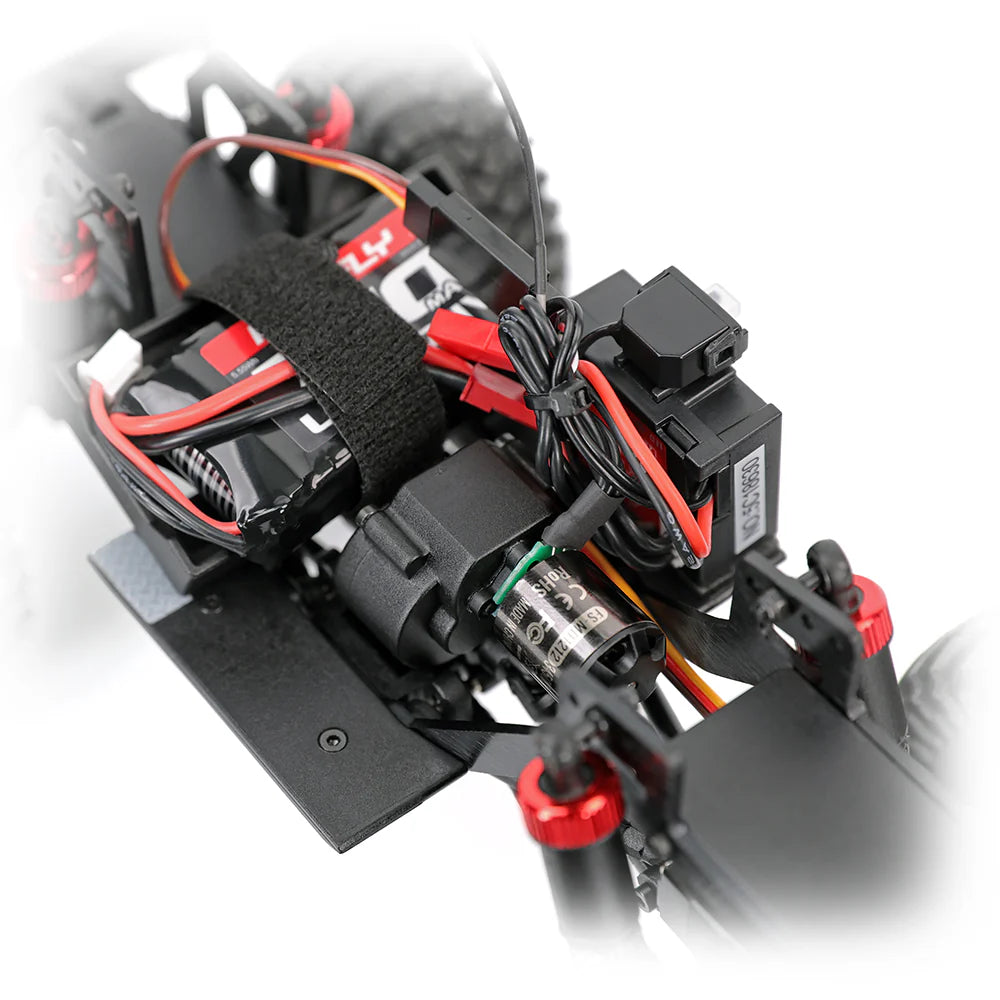

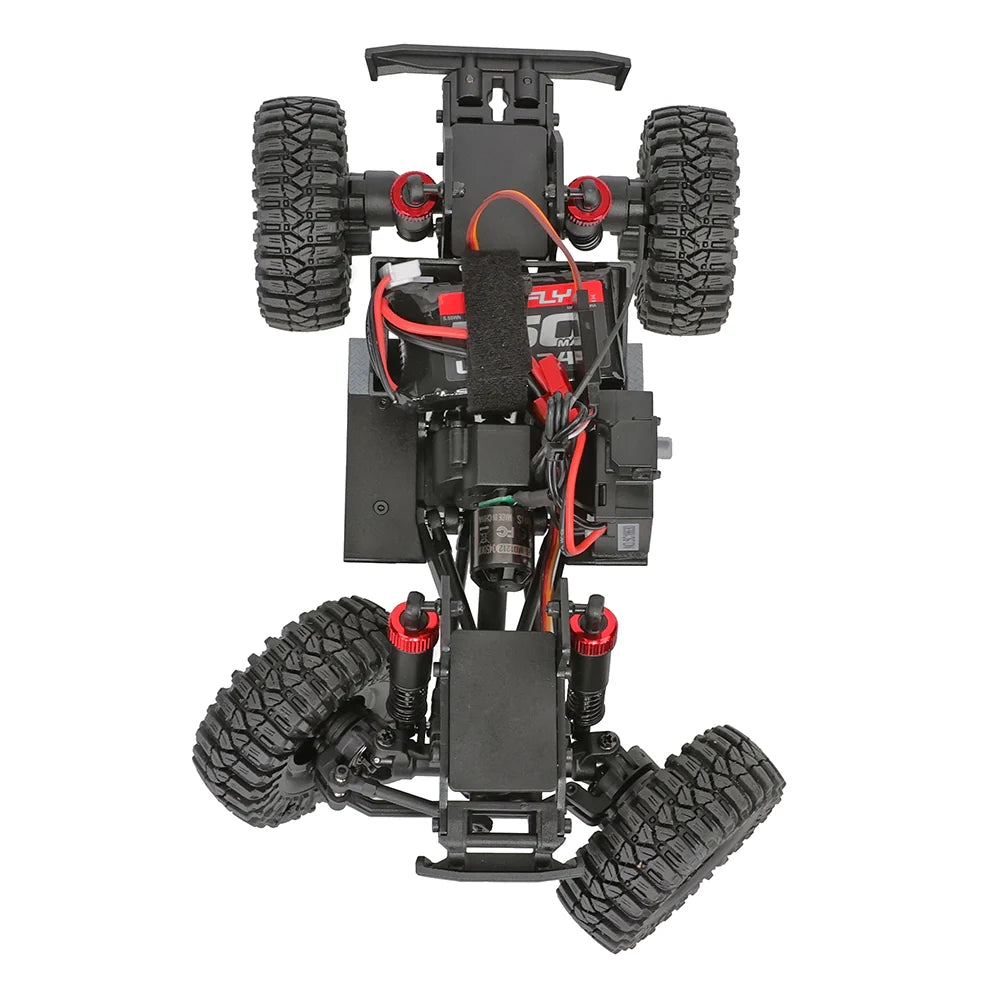

Built on a durable aluminum chassis with portal axles, machined aluminum spools, and metal gears throughout, the Ascent-18 offers impressive ground clearance, torque, and reliability. New High Steer (HS) geometry improves steering angle and clearance at the C-Hub, while aluminum-capped oil-filled shocks and full ball bearings ensure smooth, consistent trail performance.

To achieve the High Steer geometry we were looking for, we’ve redesigned the front axle housing, front portal, steering links, and added front portal universal shafts. This new “HIGH STEER” (HS) design provides increased steering and more ground clearance at the C-Hub and gives this mini crawler even more steering than its predecessors.

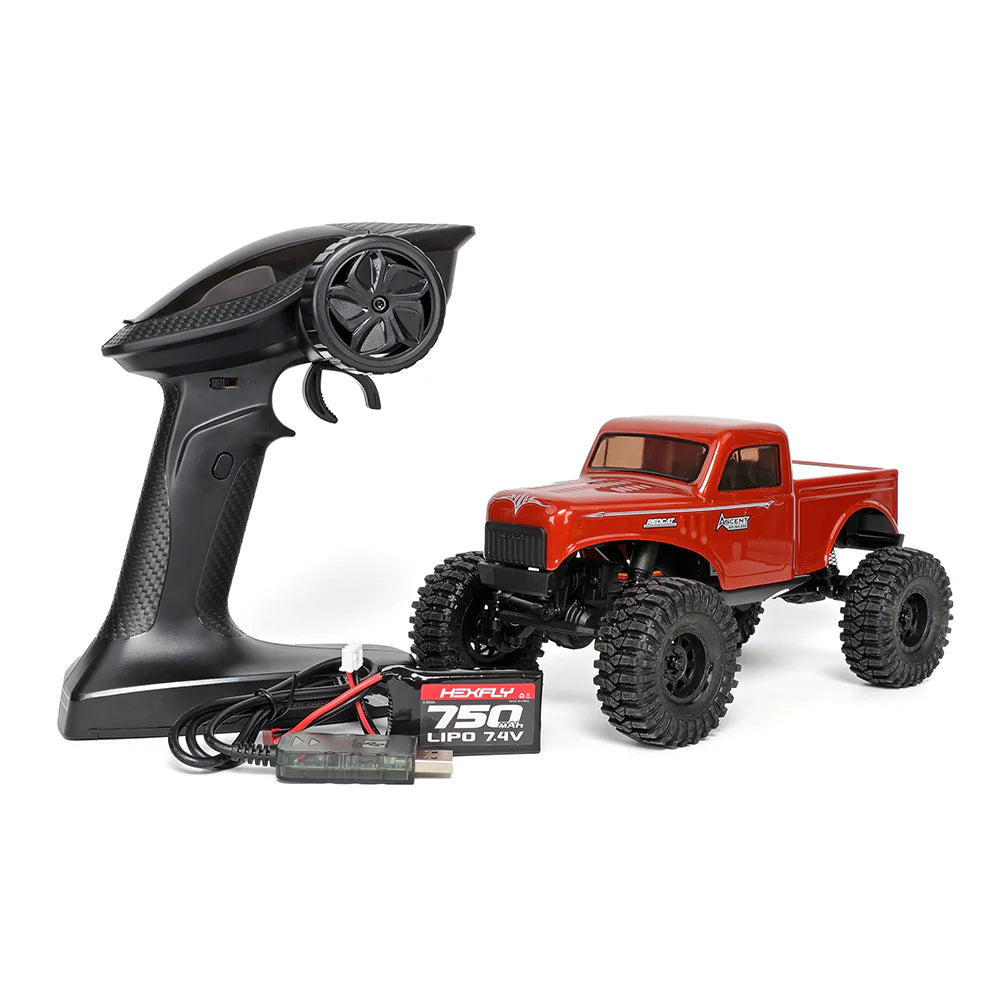

This RTR package includes a 2.4GHz radio system, 4kg metal-gear micro servo, 750mAh 2S LiPo battery, and charger. The front tilt body makes maintenance a breeze with its quick-release design—no body clips needed.

Key Features:

• 3450kv Brushless Motor & 3-Channel ESC
• Metal Portal Axles, Gears & Machined Aluminum Spools
• High Steer Geometry for Better Angle & Clearance
• Aluminum Chassis Rails & Oil-Filled Shocks
• Full Ball Bearings & Hex Hardware
• 2.4GHz Radio + 750mAh LiPo + Charger Included
• Front Tilt Body with Quick-Release Lock
• Compatible with Redcat Scout-18 & MT-18 Parts
• Wide Range of Brass, Aluminum & Steel Hop-Ups Available

Requires:

• 4 AA batteries for transmitter

Tech Specs:

Vehicle Scale: 1/18

Engine / Motor: FS-MD1212 3450KV Outrunner

Transmission: Forward & Reverse

Drive System: 4 Wheel Drive

Length: 265mm

Width: 126mm

Height: 125mm

Servo Type: 4kg Metal Gear Waterproof Servo

Wheelbase: 155mm

Ground Clearance: 38mm

Chassis Type: 2mm Flat Rail Aluminum

Wheel Width: 15mm

Wheel Diameter: 25mm

Suspension: Aluminum Capped Oil Filled Shocks

Speed Control Type: R3C-BL 2in1 ESC/Receiver Brushless (5v/1Amp BEC) 2S-LiPo ONLY

Radio System: 2.4GHz Radio System

Battery: 7.4v 750mAh LiPo with USB Charger Included

Needed to Run: 4 AA Batteries for Radio

ASCENT-18 BRUSHLESS ROCK CRAWLER

FRONT TILT BODY MOUNTING SYSTEM

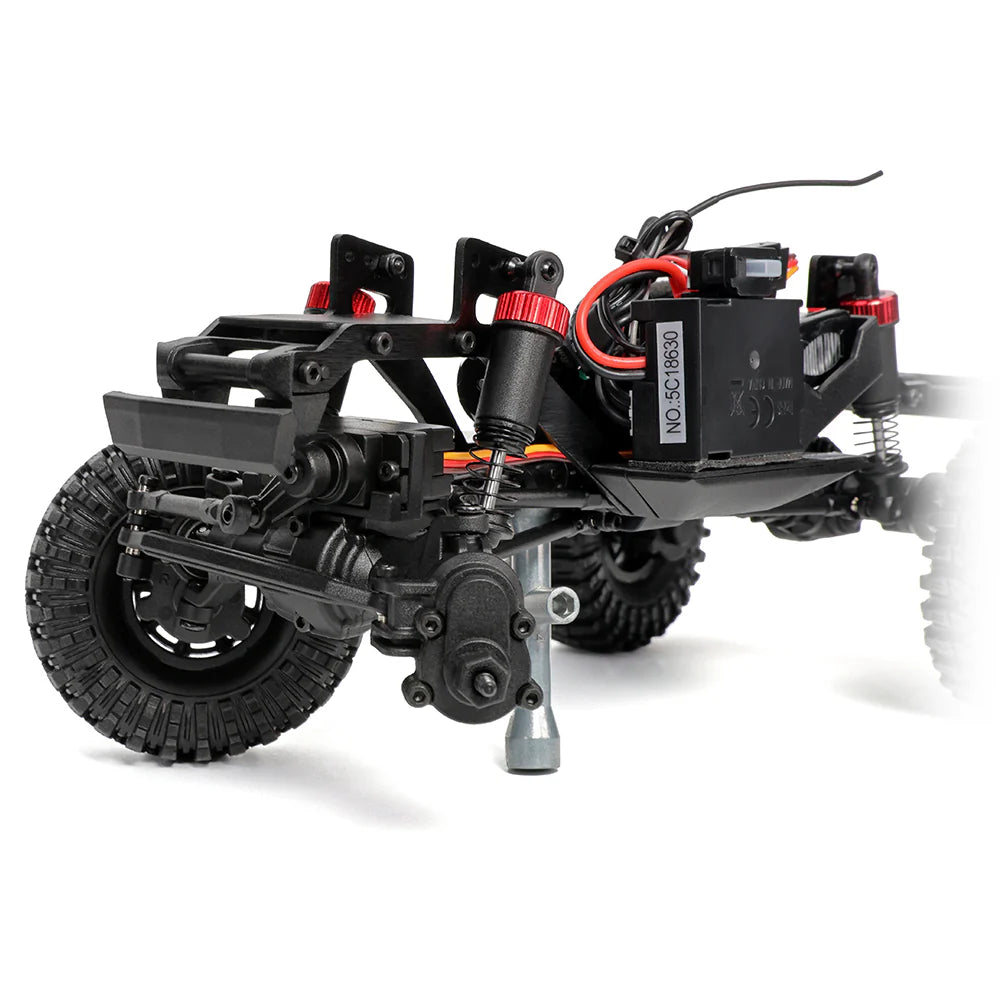

HIGH STEER (HS) PORTAL AXLES

BEARING SUPPORTED METAL AXLE GEARS

SMALL PACKAGE BIG PERFORMANCE
