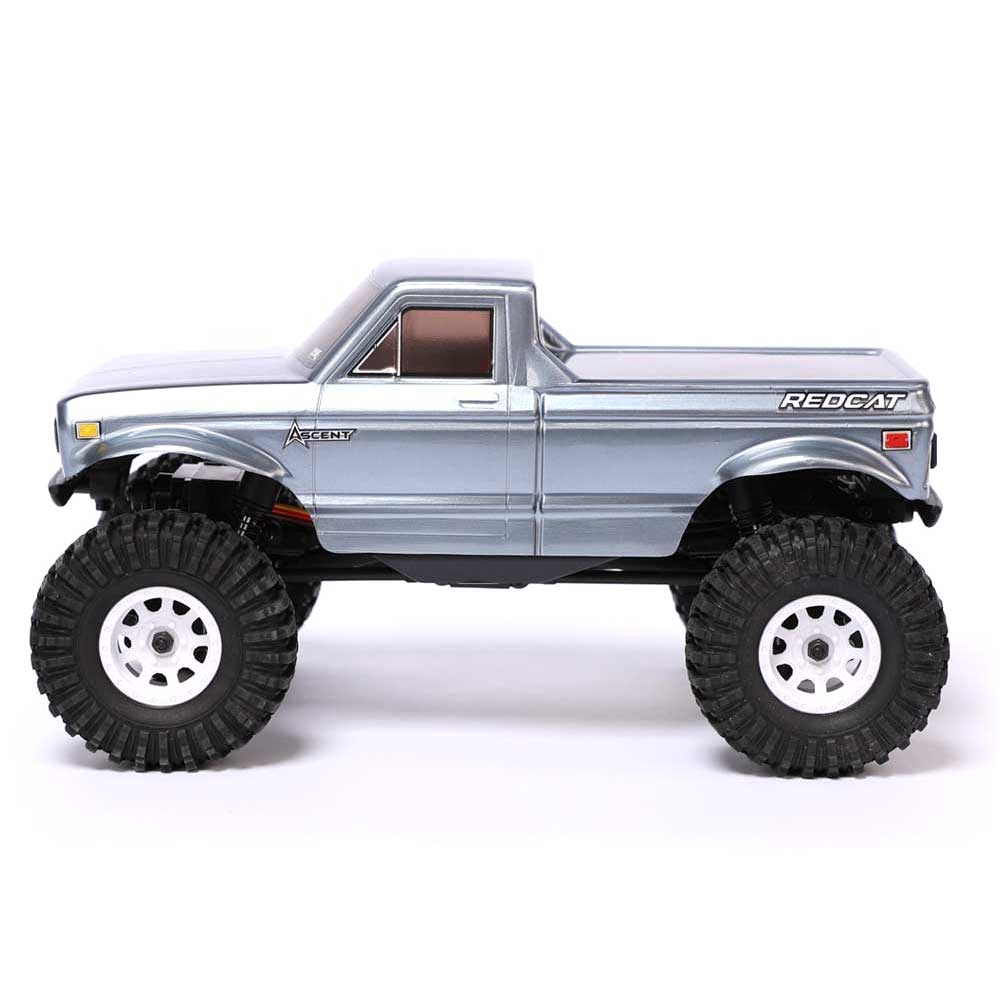

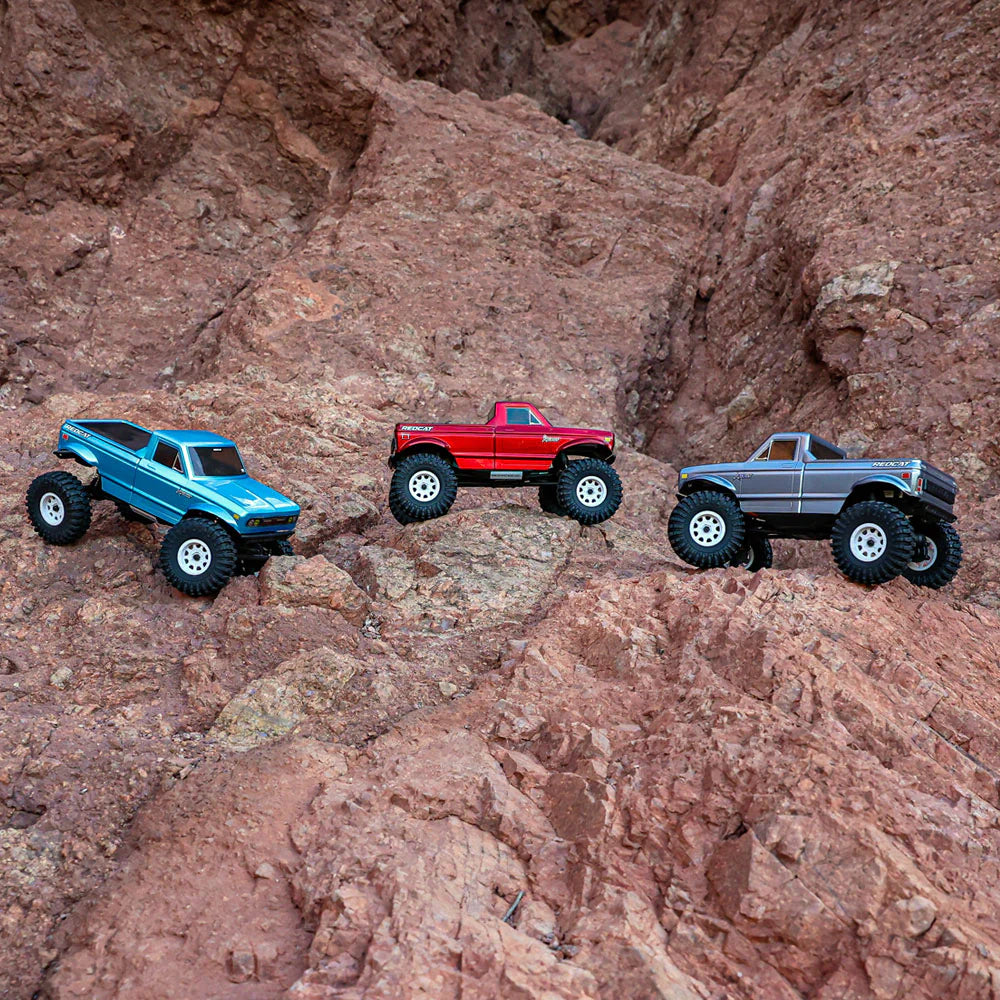

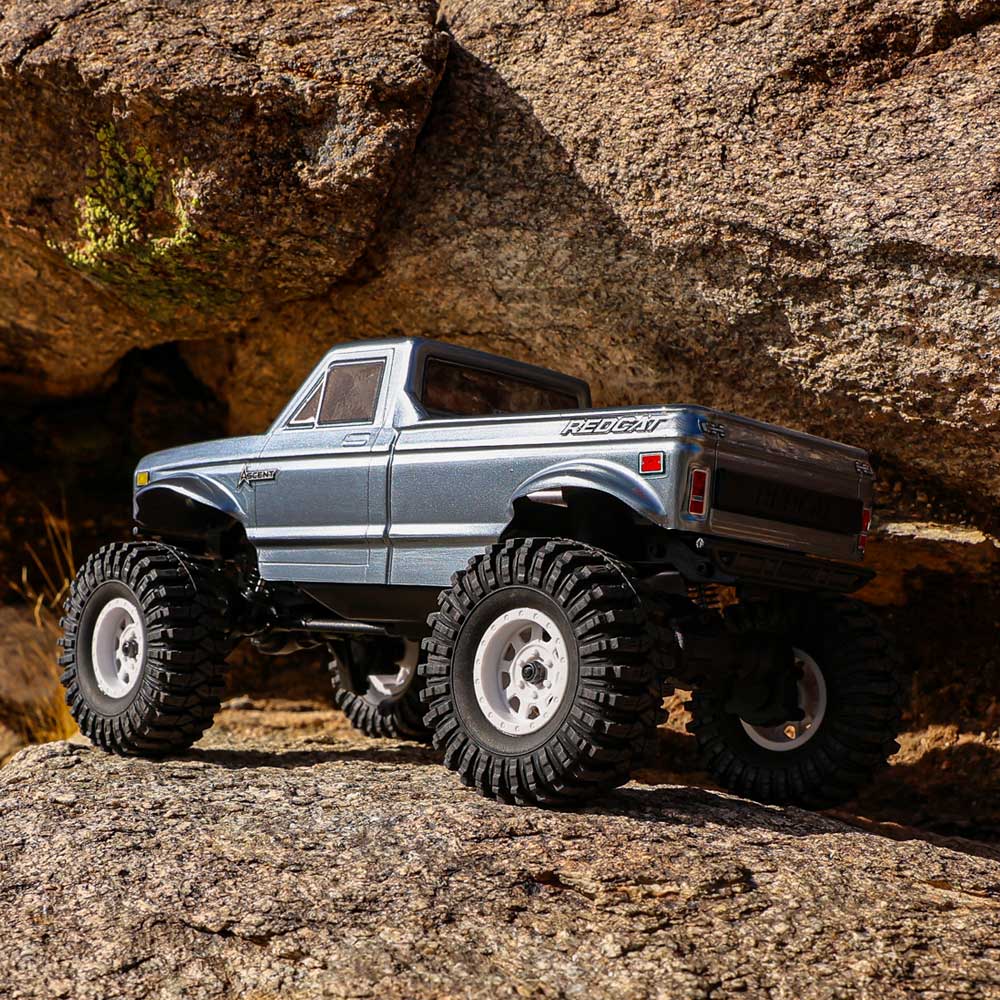

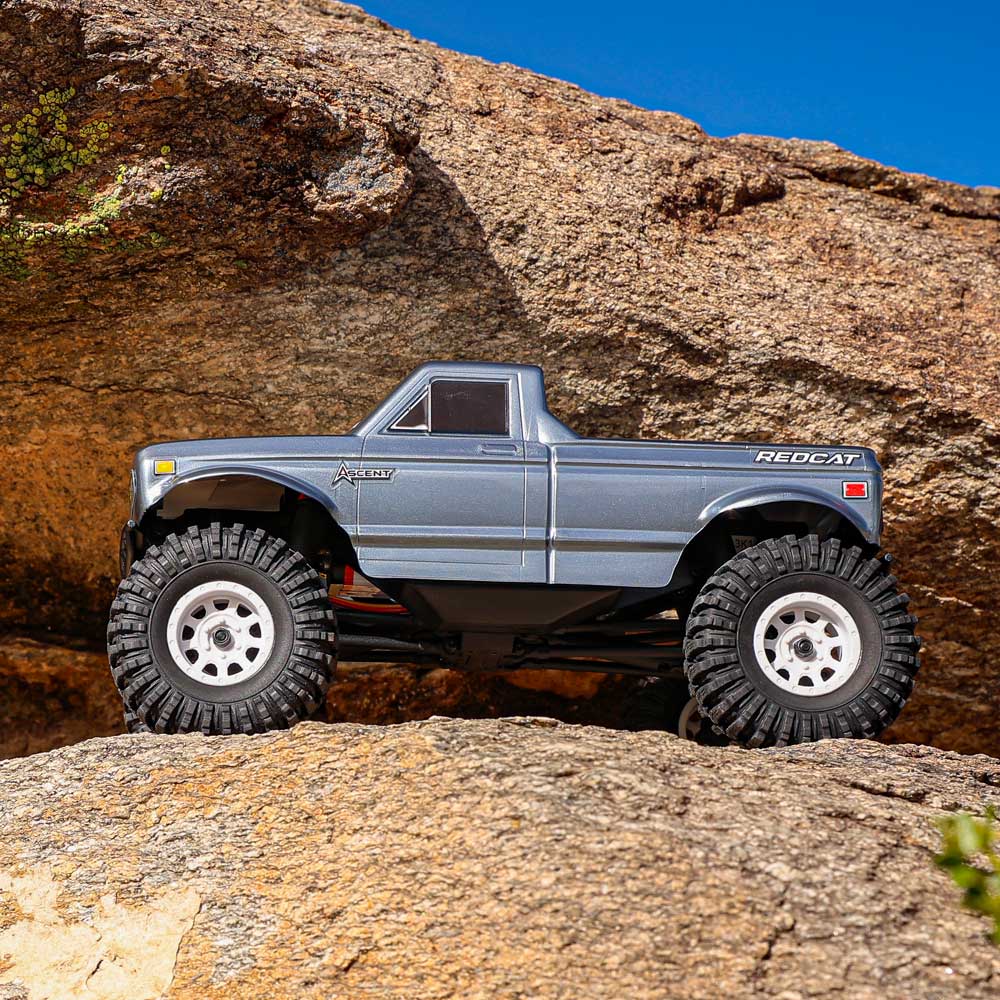

The classically styled Ascent-18 is available in three body color options (Blue, Red or Graphite)
FRONT TILT BODY MOUNTING SYSTEM
Body is hinged at the front for a clean look as well as quick access to electronics

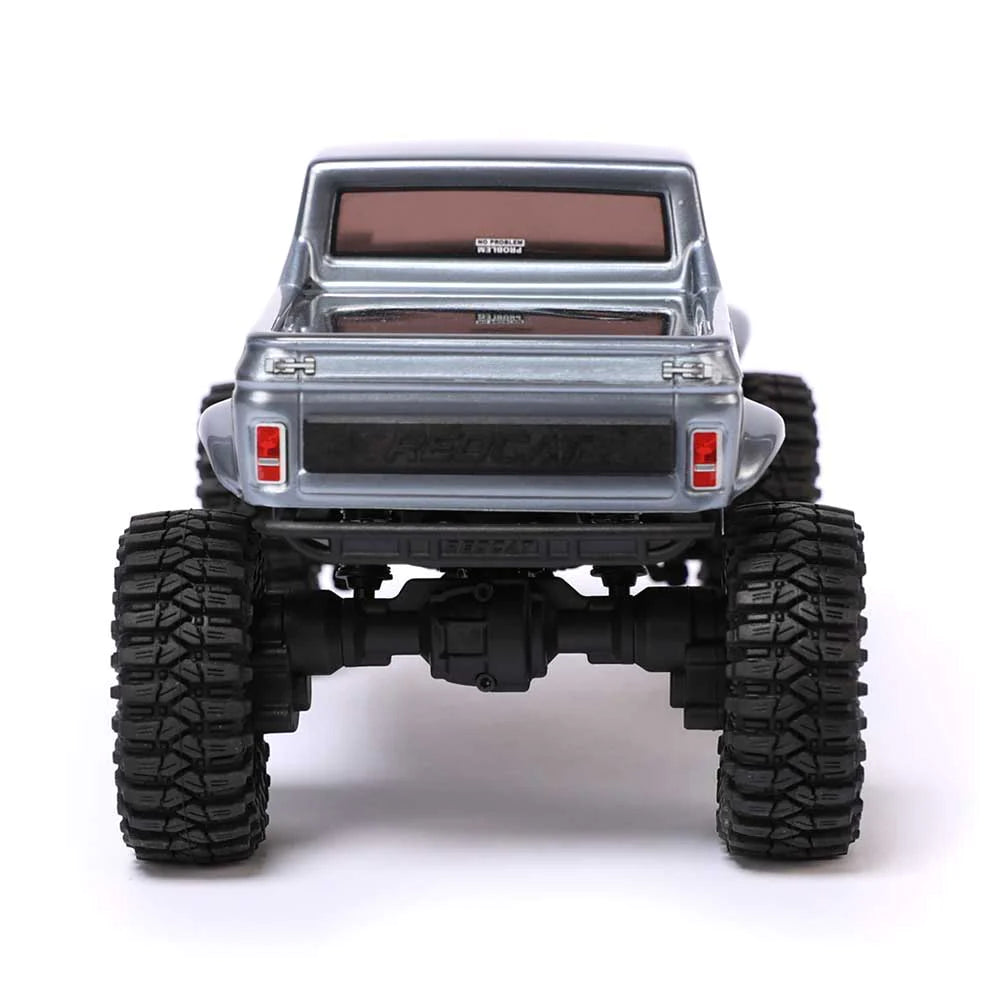

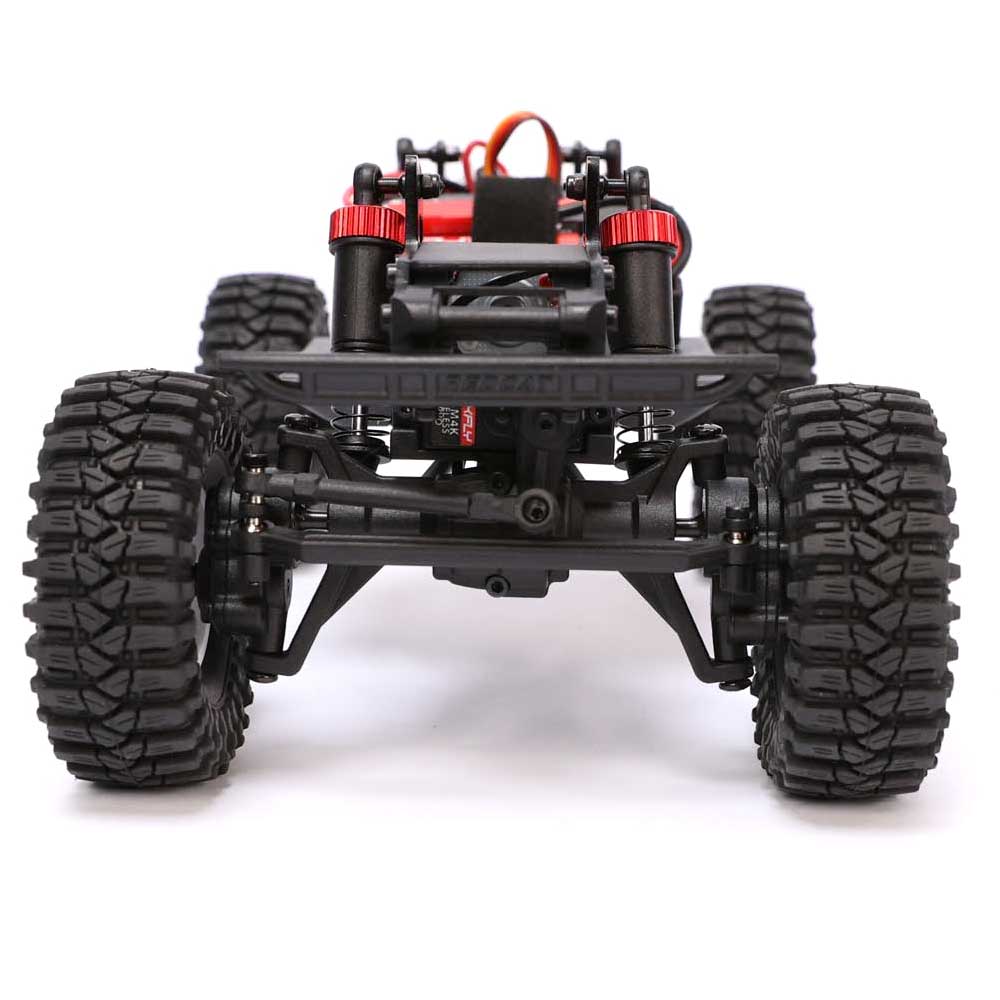

PORTAL AXLES
BEARING SUPPORTED METAL AXLE GEARS
SMALL PACKAGE BIG PERFORMANCE
Built for fun - Built to perform - Built to last
REDCAT CLASSIC WHEELS
Classically styled off road wheels wrapped with aggressive 60mm open lug soft compound rubber tires
PERFORMANCE TUNED SHOCKS
Aluminum capped oil filled coilover shocks

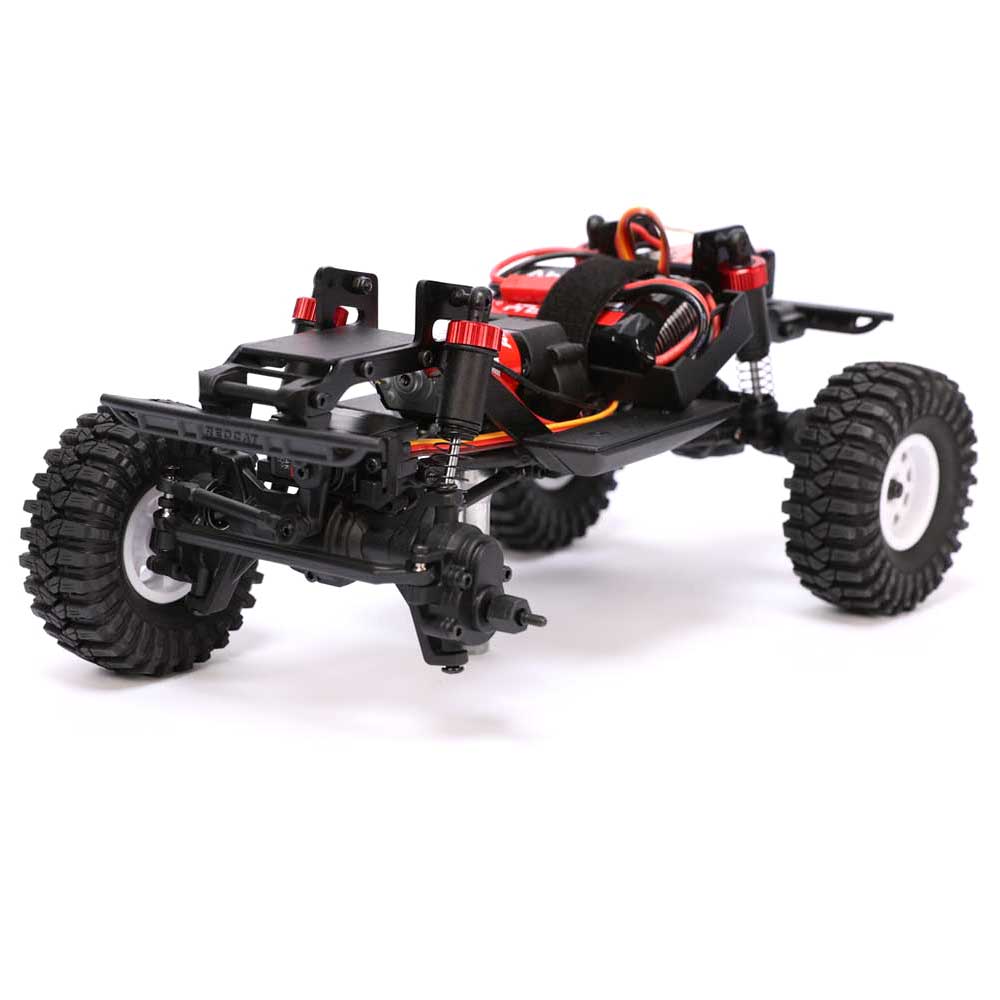

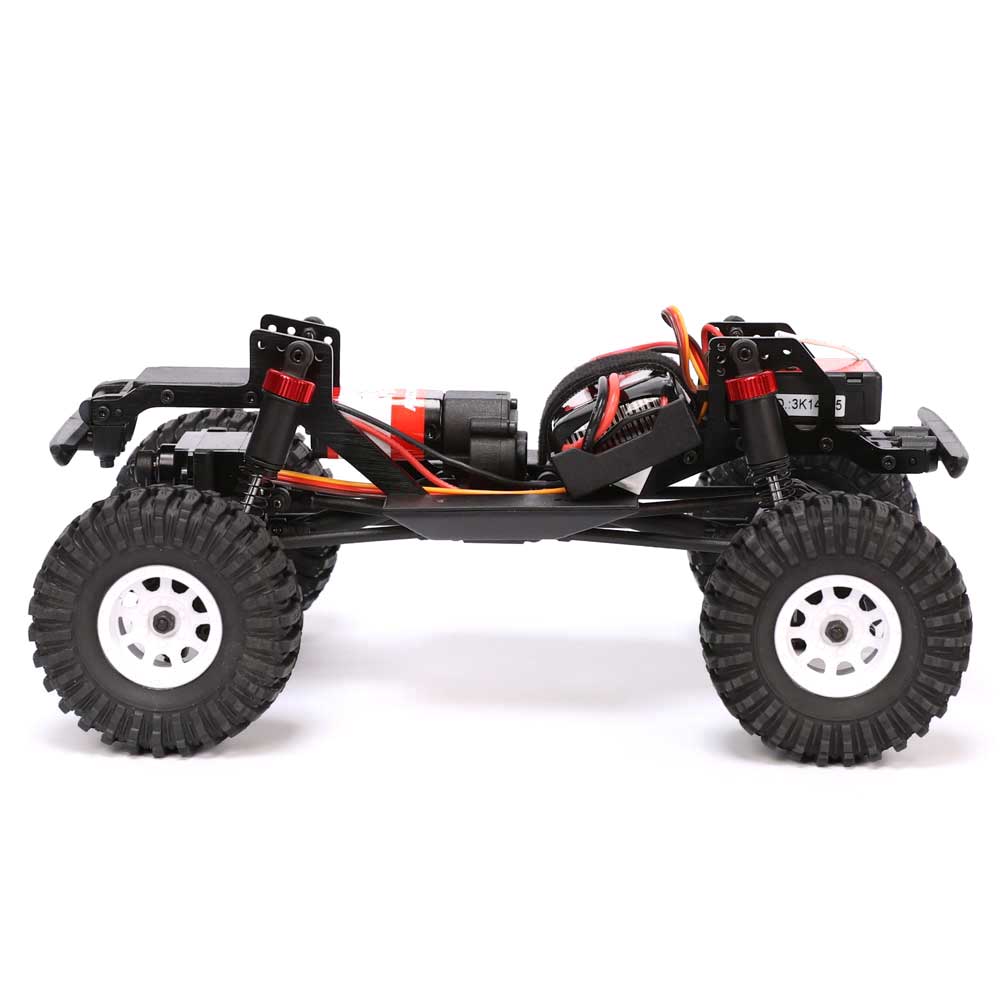

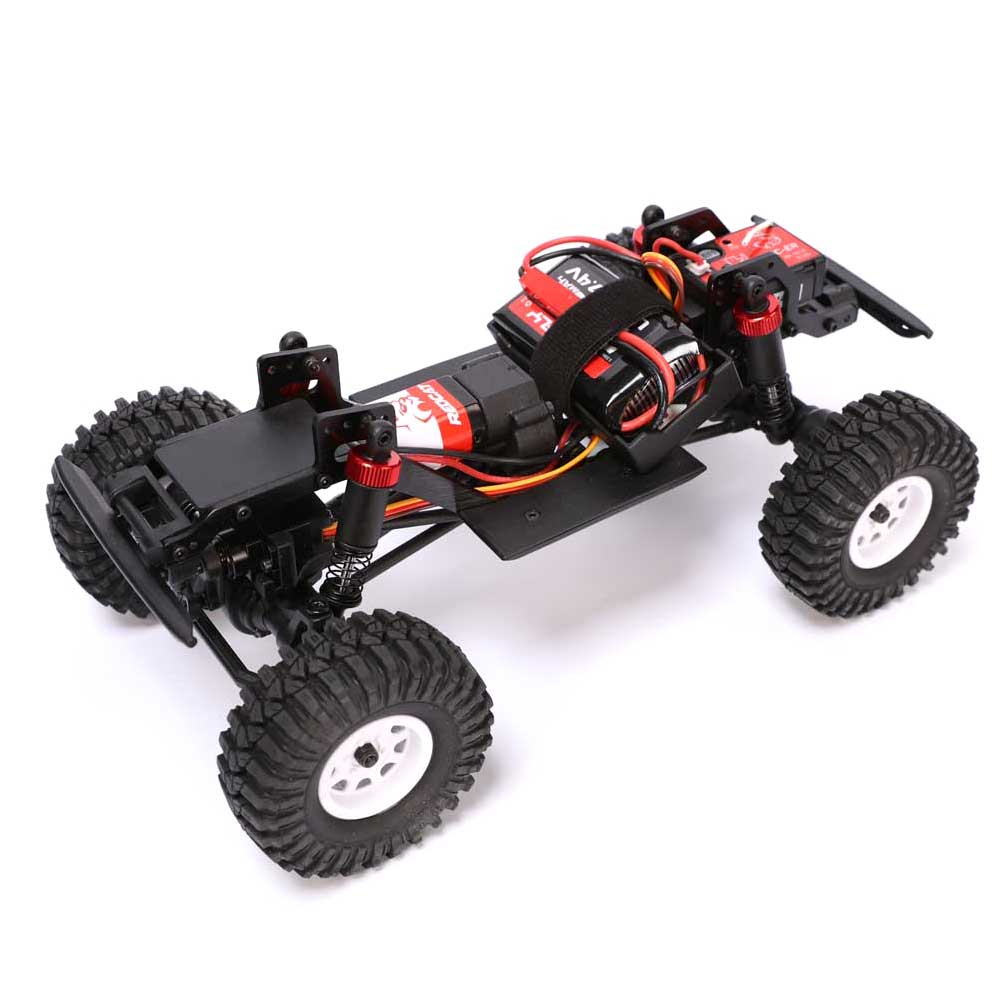

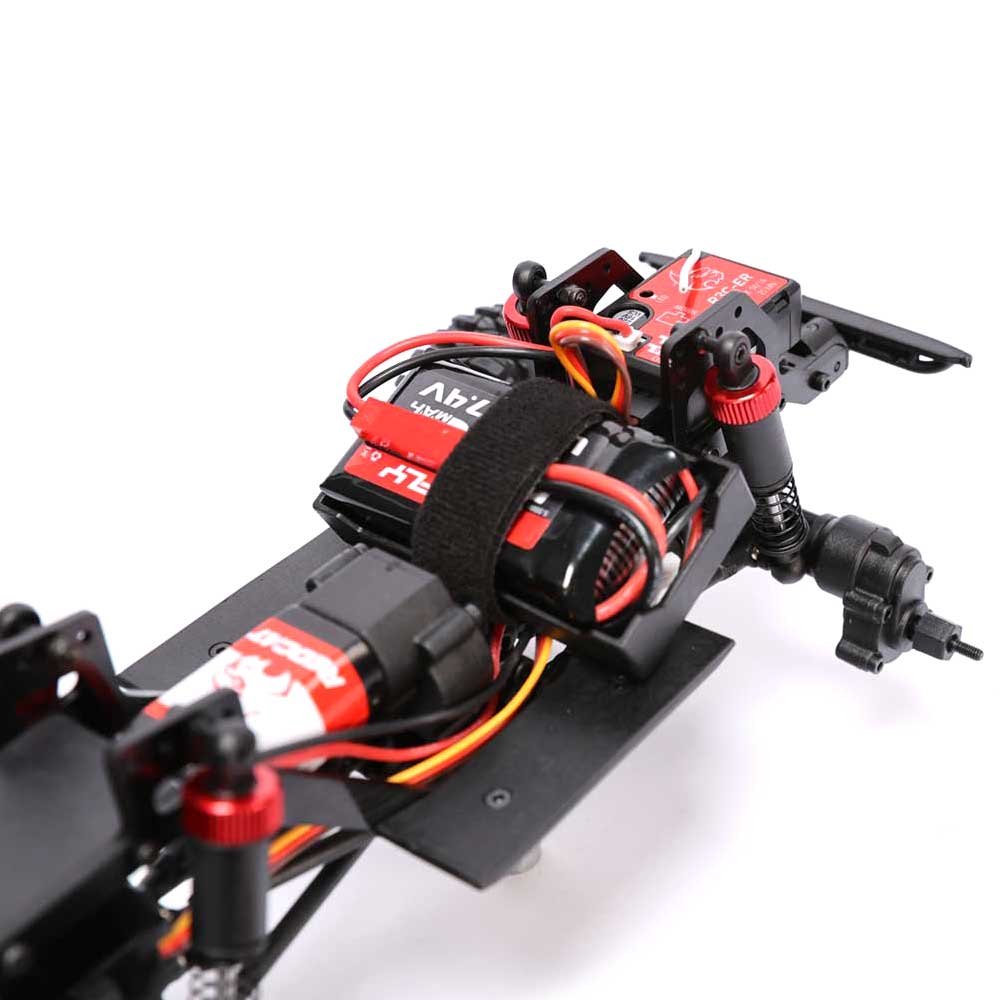

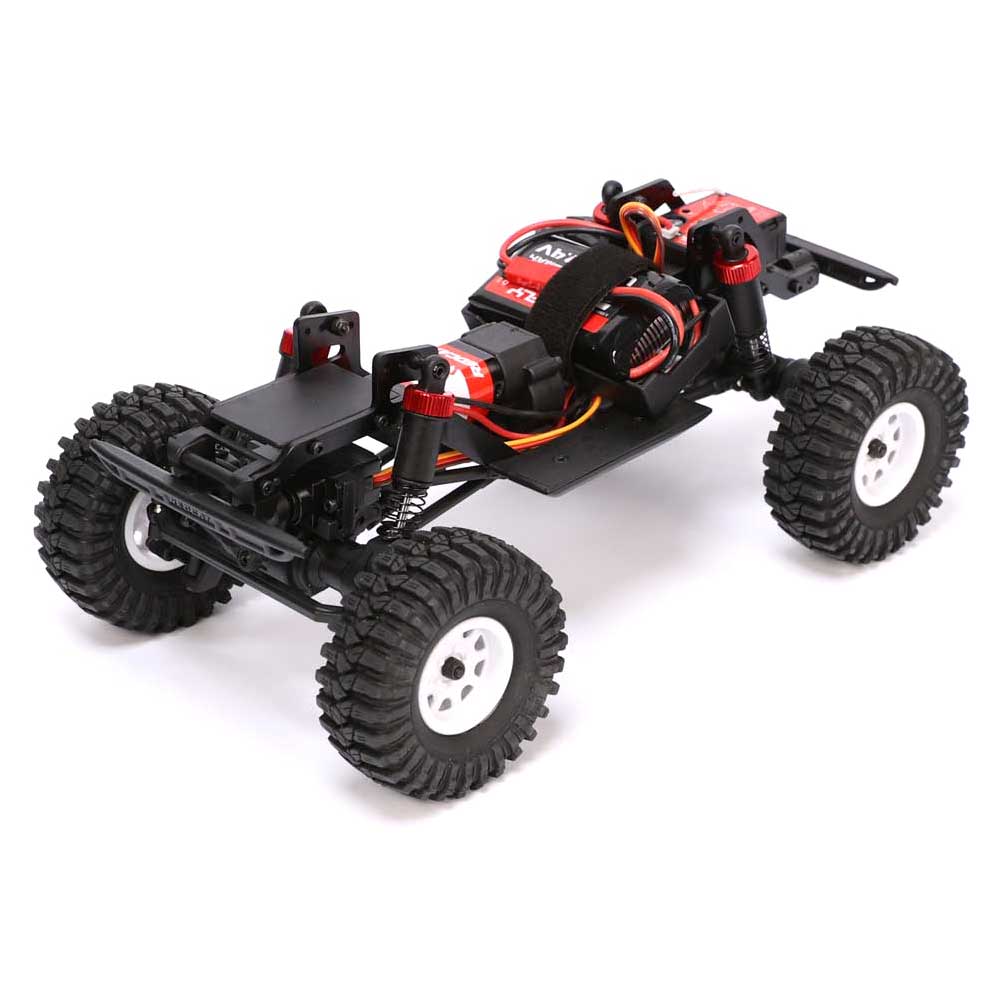

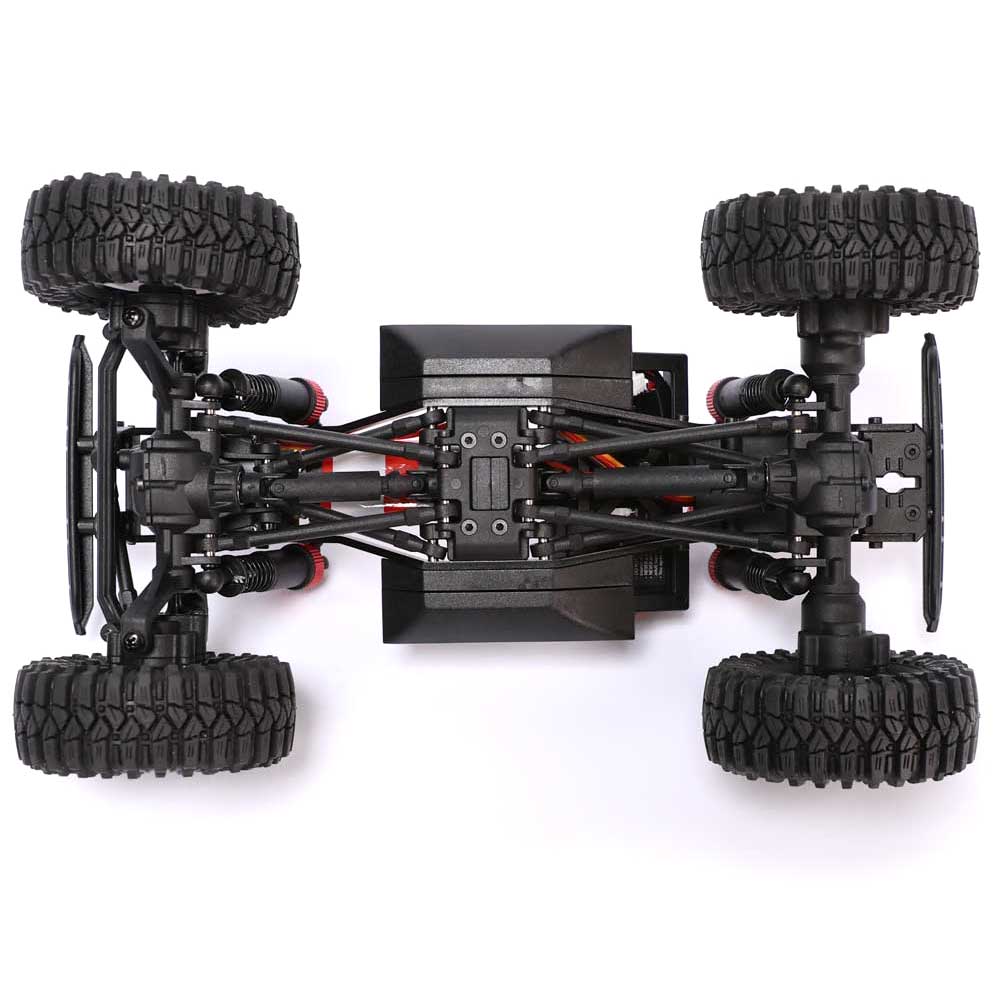

4-LINK SUSPENSION & METAL CHASSIS FRAME
REDCAT MULTI-CHANNEL RADIO & RECEIVER
Ascent-18 comes with 750mAh LiPo battery, USB charger, multi-channel radio with 2-in-1 receiver
Vehicle Scale :
1/18
Engine / Motor
RC180 Brushed Motor
Transmission
Forward & Reverse
Drive System
4 Wheel Drive
Length
218mm
Width
130mm
Height
114mm
Servo Type
4kg Metal Gear Waterproof Servo
Wheelbase
155mm
Ground Clearance
42mm
Chassis Type
2mm Flat Rail Aluminum
Wheel Width
15mm
Wheel Diameter
25.5mm
Suspension
Aluminum Capped Oil Filled Shocks
Speed Control Type
2in1 ESC/Receiver Brushed
Radio System
2.4GHz Radio System
Battery
7.4v 750mAh LiPo with USB Charger Included
Needed to Run
4 AA Batteries for Radio

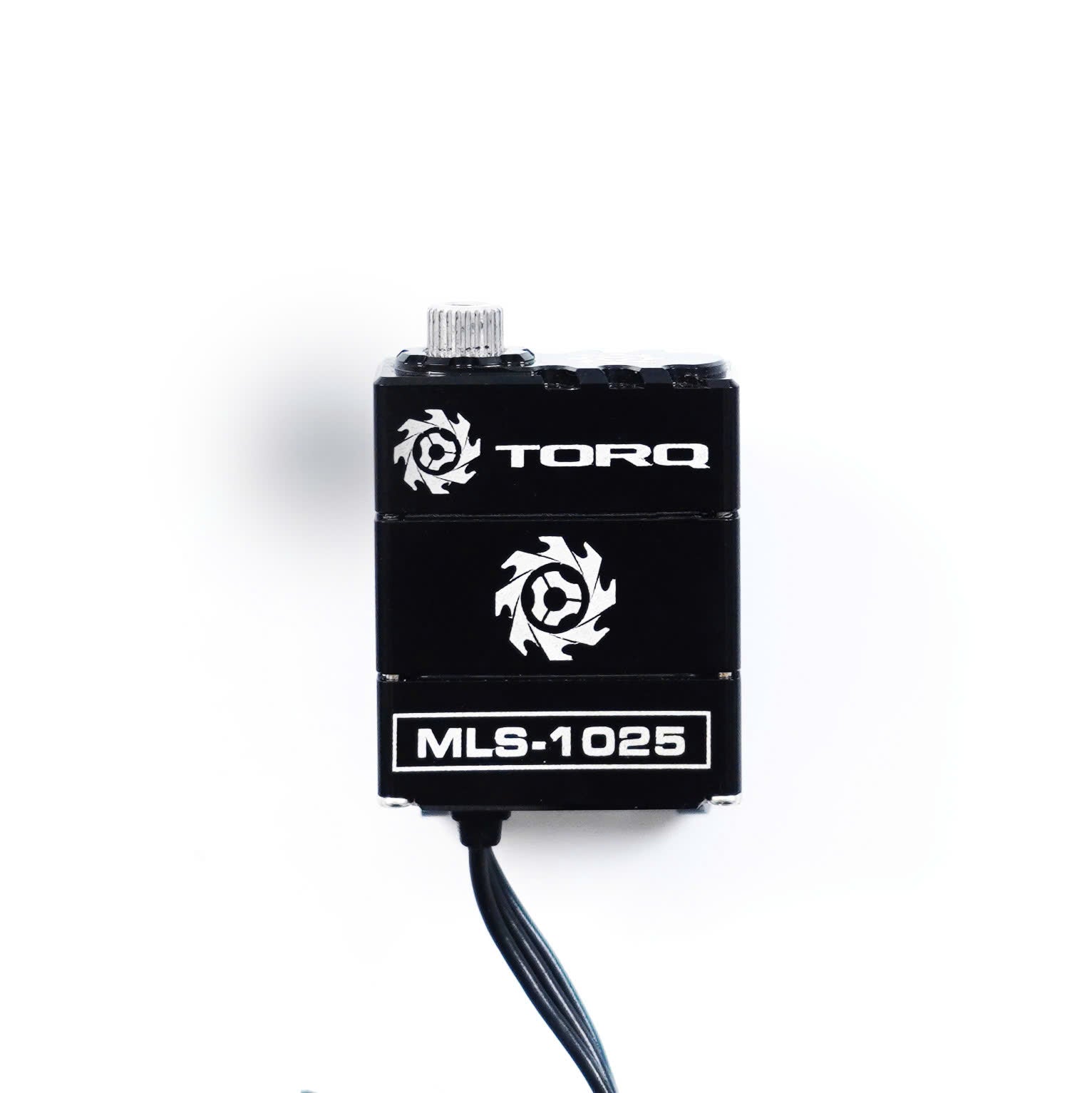

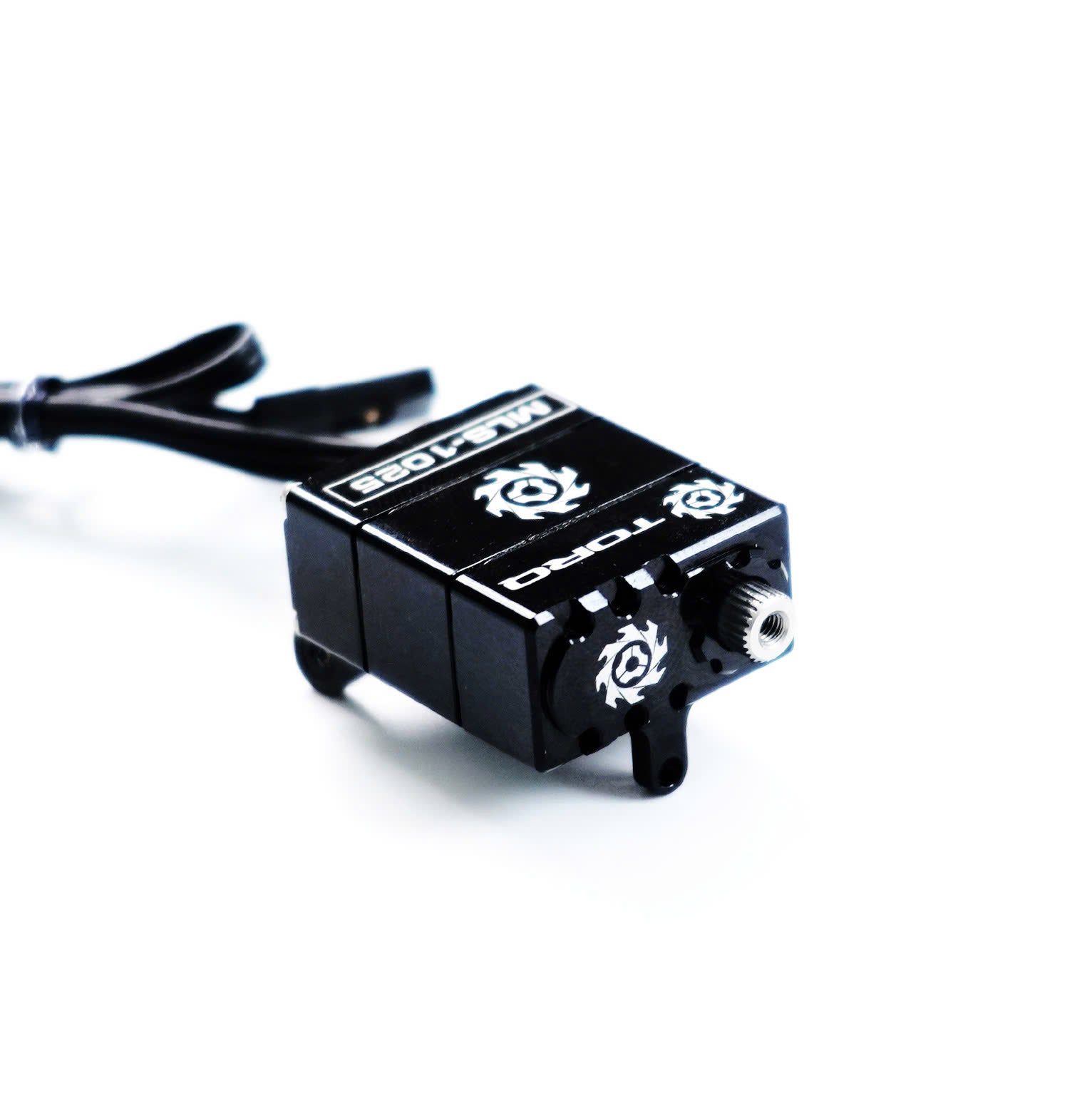

TORQ MLS-1025 Premium DIRECT-MOUNT Servo for REDCAT Ascent-18
The TORQ MLS-1025 Premium DIRECT-MOUNT Servo for REDCAT Ascent-18 is expertly engineered to cater to the needs of small-scale crawlers. This innovative servo design eliminates traditional servo ears, providing ample clearance between the servo and the frame rails, ensuring smooth and unobstructed suspension movement. The MLS-1025’s unique configuration also eliminates the necessity for a separate servo mount, simplifying the installation process.
Key features include rear exit wires, further ensuring that suspension travel remains unhindered. This servo is designed for ultimate clearance all around, making it a standout choice for crawler enthusiasts. The design is patent-pending, showcasing its unique and innovative nature.
The MLS-1025 is compatible with the following models:
Redcat Ascent-18 International Scout II - 1/18 Scale Brushed Electric Rock Crawler
Redcat Ascent-18 RC Crawler - 1:18 Brushed Electric Rock Crawler
Redcat MT-18 - 1/18 Scale Brushed Monster Truck.
FULL Precision CNC Aluminum Case with black anodizing colors.
FREE CNC Servo Horn THN-104 – $14.99 Value
Features
High Torque Output:Delivers powerful performance for small-scale crawlers.
Mountless Design: Eliminates the need for a separate servo mount, reducing the overall cost.
No Servo Ears:Provides ample clearance between the servo and frame rails, ensuring smooth suspension movement.
Rear Exit Wires:Ensures suspension travel is unhindered for optimal performance.
Simplified Installation: Easy to mount due to its unique design.
Enhanced Clearance: Designed for ultimate clearance around the servo.
CNC Servo Horn Included: Limited time offer includes a free CNC servo horn.
Full precision CNC Metal Gears
Full precision CNC Aluminum Case with black anodizing color.
Waterproof
Patent Pending: The innovative design is currently under patent protection.
Specifications
-Dead Bandwidth: 3μs
-Working Frequency: 1520μs / 330Hz
-Operating Voltage: 5.0V - 8.4V
-Motor Type: Coreless Motor
-Operating Speed:
·At 5.0V: 0.10 sec/60°
·At 6.0V: 0.09 sec/60°
·At 7.4V: 0.07 sec/60°
·At 8.4V: 0.055 sec/60°
-Stall Torque:
·At 5.0V: 9 kg-cm (125 oz-in)
·At 6.0V: 11.5 kg-cm (160 oz-in)
·At 7.4V: 12.8 kg-cm (177 oz-in)
·At 8.4V: 14.5 kg-cm (200 oz-in)
-Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)
-Weight: 22.0 g (0.78 oz)
-Connector Wire Length: JR 170 mm (6.7 inches)
-Output Gear Spline: 25T
Benefits
-Space Efficiency: Compact design fits seamlessly within small-scale crawler setups.
-Cost Savings: No need to purchase additional CNC servo mounts and CNC servo arms.
-Performance Enhancement: Unhindered suspension movement leads to better crawler performance.
-Ease of Installation: Simplifies the mounting process, saving time and effort.
-The TORQ MLS-1025 Premium High Torque Servo for REDCAT Ascent-18 is an excellent choice for crawler enthusiasts looking for a high-performance, easy-to-install, and cost-effective servo solution.
