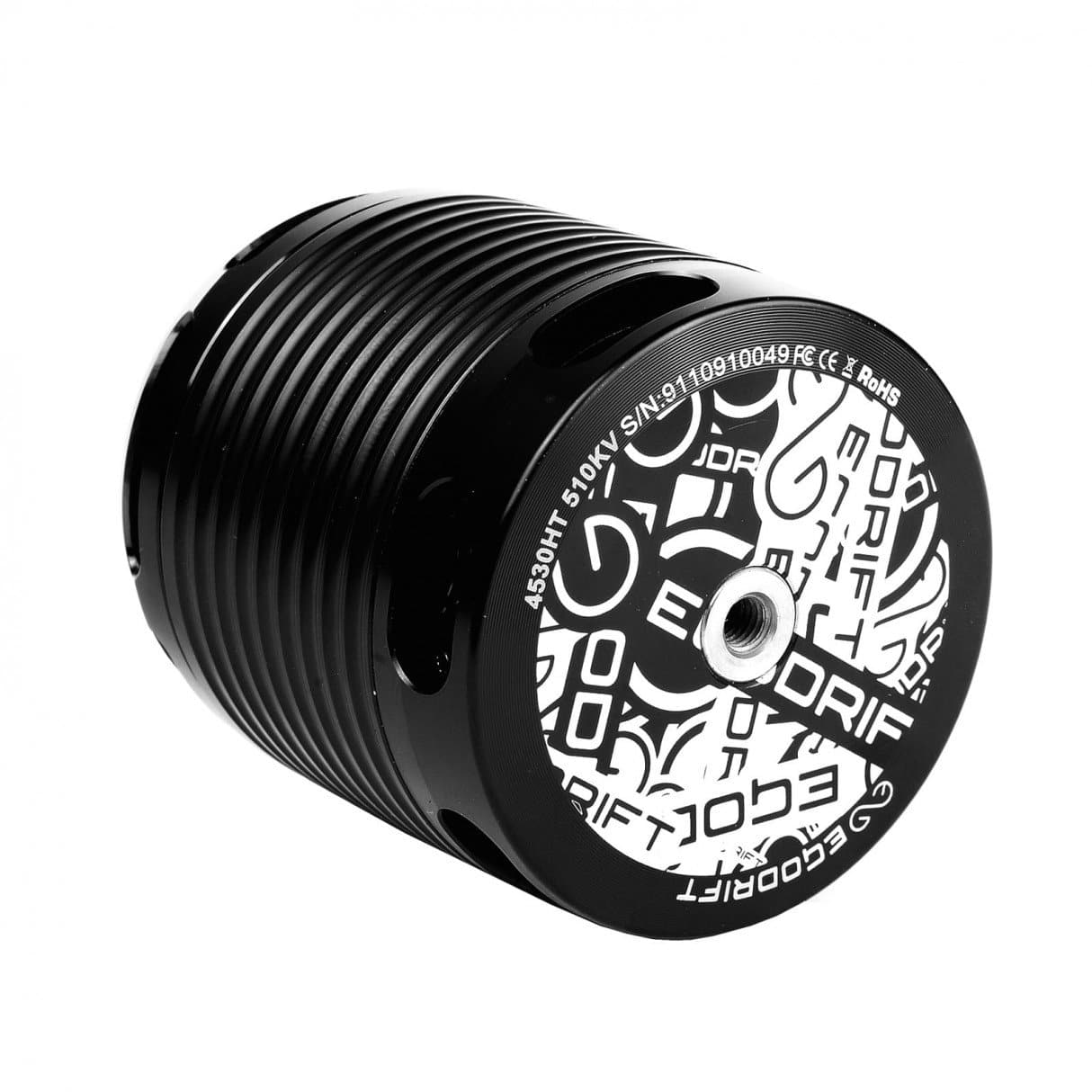

EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4530HT Tengu comes with a kV rating of 510kV and fits all 700-800mm class helicopters, such as the XLPower Spectre 700, SAB Goblin 700-770, Quest Impaction, Align T-Rex 700-800, Mikado 700 or Gaui 700 (and various other models).
All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.

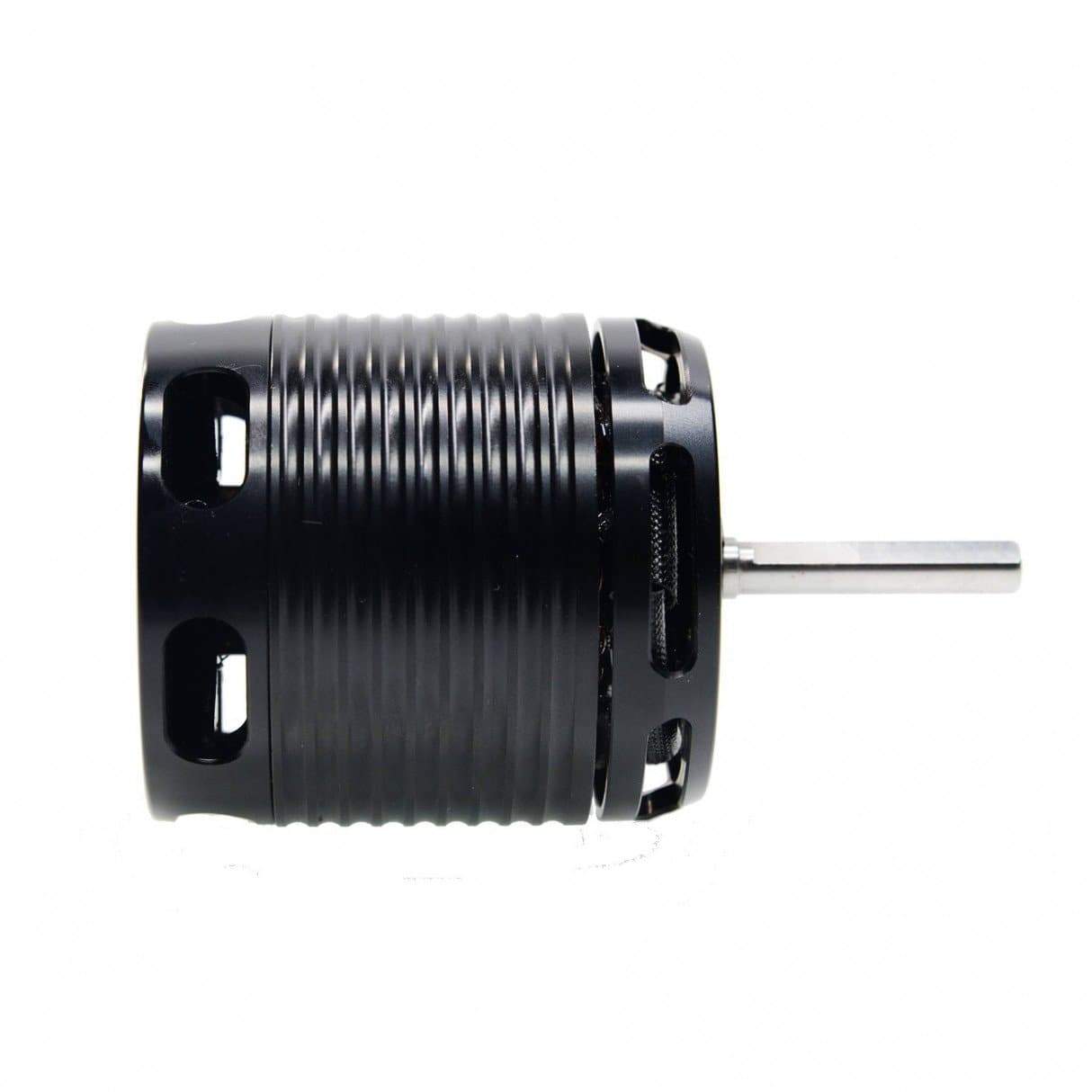

External length of the shaft: 35mm or 55mm (please choose)
SPECIFICATIONS
- Manufacturer:Ā EGODRIFT
- Stator size:Ā 4530
- Motor configuration:Ā 12N10P
- Motor weight:Ā 525g (18.52oz)
- Base Colour:Ā Black
- Wire colour:Ā Copper
- Motor wire type:Ā High temperature copper wire
- Motor wire:Ā 1.3mm
- Motor shaft:Ā Hardened Steel
- Shaft diameter:Ā 6.0 mm
- LiPo cells:Ā 12S, 14S
- Motor kV:Ā 510 kV
- Stator diameter:Ā 45 mm
- Stator height:Ā 30 mm
- Stator lamination:Ā 0.15 mm (+)
- Body Length:Ā 60.58mm (2.39 inch)
- Diameter:Ā 56.40 mm (2.22 inch)
- Screw hole diameter:Ā 4,0 mm
- Motor hole pattern:Ā 30mm
- Idle current:Ā 3.9A
- Maximum Current:Ā 135A (Peak: 255A / 2 seconds)
- Maximum Power:Ā 6480W (Peak: 12240W / 2 seconds)
- Internal resistance:Ā 12 mOhm
- Connection:Ā Wire / Gold plated plugs
- Designer:Ā Yutao Zou
Ā
| Vendor: | Egodrift |
| SKU: | 11769 |
| Barcode: | 760412642860 |
| Availability: | In Stock |
| Product Type: | Heli Motors |
| Weight: | 2.0 lb |
You may also like
Recently Viewed Products
Customer Reviews
Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Love egodrift motor, they are a power house, super efficient and run cold .
R
I will chnaging my 700 using a scorpion motor with this ( egodrift tengu 4530 HT). I am excited!
A
I love this motor. I got one on my GOBLIN 770, and now in to my TRex-800 DFC Pro. It runs way cooler than the motor that came with the TRex-800.
I'll probably buying two more of this in the future for my VELOS-880.
J
I came from a non lightning xnova motor. It was running on the hotter side in my Kraken and I honestly thought it needed just a bit more power. Look no further with this Egodrift option!. It has excellent cooling. (I live in a hot tropical environment) and the power is just ridiculous. In a very good way lol. I think anyone that flys helis will appreciate the quality and sheer performance this series of motors has to offer at an excellent price to boot. Just try it and the motor speaks for itself
